The optical communication products researched and developed by the company mainly include GPON/EPON, SDH/SONET, GBE&FC, WDM series modules, and the transmission rate is 100Mbps to 100Gbps.
PRODUCT FEATURES Supports 400Gb/s aggregate bit rate Maximum link length of 100m on OM4 Multimode Fiber (MMF) Hot-pluggable QSFP-DD footprint Low power Consumption RoHS-6 compliant and lead-free +3.3V single power supply 8x50G PAM4 retimed 400GAUI-8 Electrical interface aligned with IEEE 802.3bs Support Digital Diagnostic Monitor interface Case operating temperature Commercial: 0°C to +70°C

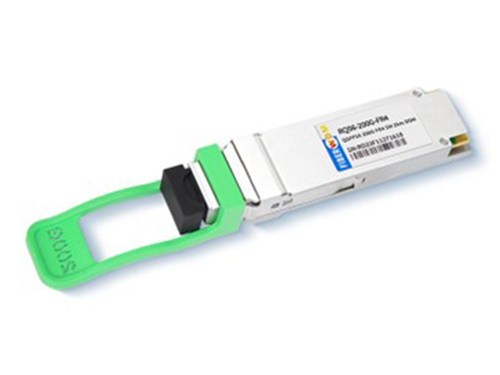

PRODUCT FEATURES Up to 26.5625Gbps data rate per channel by PAM4 modulation 4 duplex channels transmitters and receivers Integrated CWDM LD and PD array Single +3.3V power supply DDM function implemented Hot-pluggable QSFP56 form factor Transmission length up to 2km Low power dissipation:<6.5W International class 1 lasar safety certified Operating temperature range: 0℃ ~ +70 ℃ Compliant with ROHS10

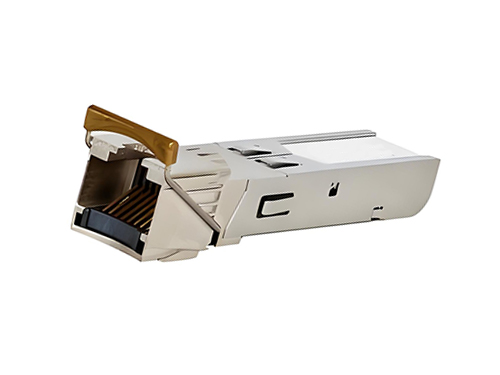

PRODUCT FEATURES Up to 1.25Gb/s bi-directional data links Hot-pluggable SFP footprint Industrial case temperature range (-40°C to +85°C ) Fully metallic enclosure for low EMI Low power dissipation (1.05 W typical) Compact RJ-45 connector assembly Access to physical layer IC via 2-wire serial bus 10BASE-T,100BASE-T and 1000 BASE-T operation in host systems with SERDES interface 10/100/1000Mbps compliant in host systems with SGMII interface

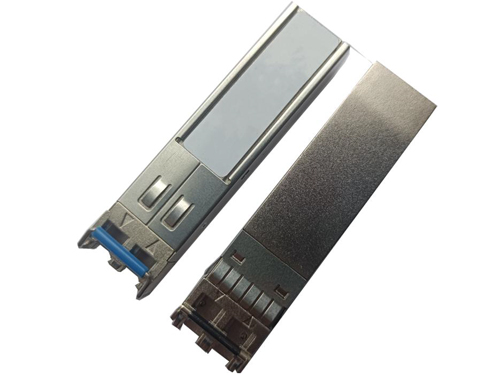

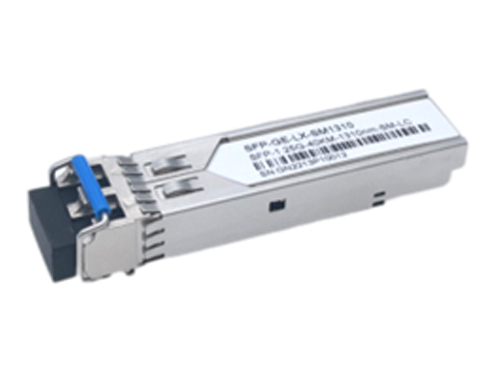

PRODUCT FEATURES Up to 1.25Gbps Data Links 1310nm DFB laser transmitter and PIN/TIA receiver Maximum link length of 40km on 9/125um SMF Hot-pluggable SFP footprint Duplex LC receptacles Low power dissipation RoHS compliant and lead-free Support Digital Diagnostic Monitor interface Single +3.3V power supply Compliant with SFF-8472 Case operating temperature Commercial:0℃ to +70℃ Extended: -20°C to +85°C ndustrial:-40℃ to +85℃
Esoptic’s ESGALF31-K20C-G series of transceiver modules are the perfect solution for low-speed communication networks. These transceiver modules support data rates up to 2Mbps. The module is fully compliant with Small Form-Factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA). These transceiver modules provides the system designer with The transceiver module provides the system designer with products to RS232/RS485/RS422 receptacle fiber transmission and Other multimode fiber networks.
Features ·Low insertion loss ·High extinction Ratio ·Excellent stability and reliability Applications ·WDM network system ·Fiber lasers ·Fiber amplifiers

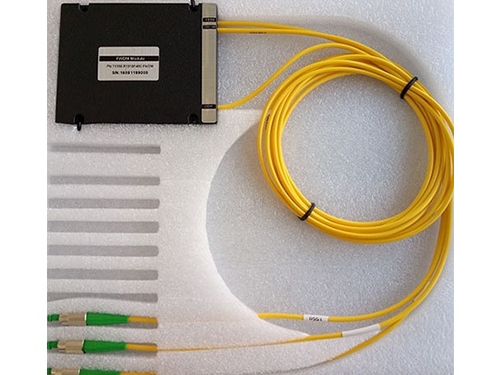

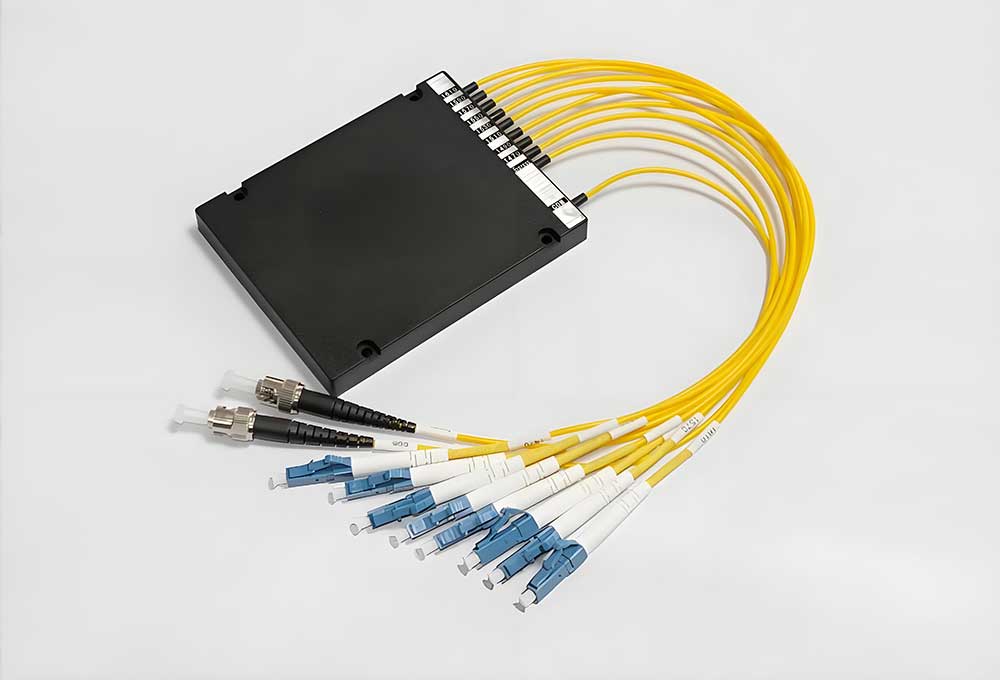

Features ·Wide pass band ·Low insertion loss ·Low Crosstalk ·High channel isolation ·High stability and reliabilit Applications ·CWDM system
Features ·Wide pass band ·Low insertion loss ·Low Crosstalk ·High channel isolation ·High stability and reliabilit Applications ·CWDM system
Features ·Wide pass band ·Low insertion loss ·Low Crosstalk ·High channel isolation ·High stability and reliability Applications ·CWDM system ·CDWM Mux/Demux module
Features ·Wide pass band ·Low insertion loss ·Low Crosstalk ·High channel isolation ·High stability and reliabilit Applications ·CWDM system
Features ·Low insertion loss ·Low polarization sensitivity . Excellent environmental reliability Applications ·Fiber optical communication system ·LAN ·CATV ·Fiber sensor ·Measure instruments

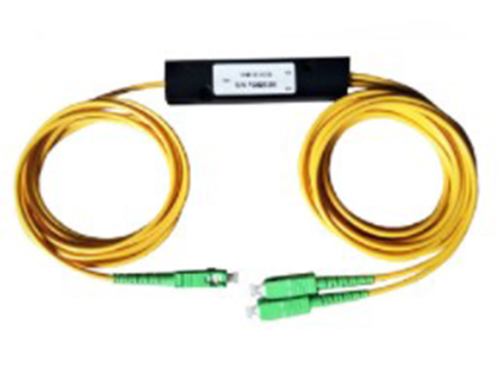

Features ·Low insertion loss ·High reliability& High stability ·RoHS compliant Applications ·EDFA ·CATV Passive network WAN ·FTTH

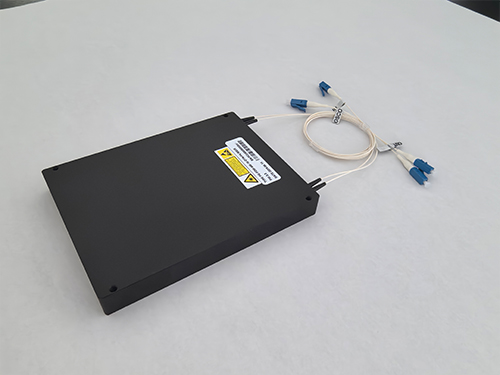

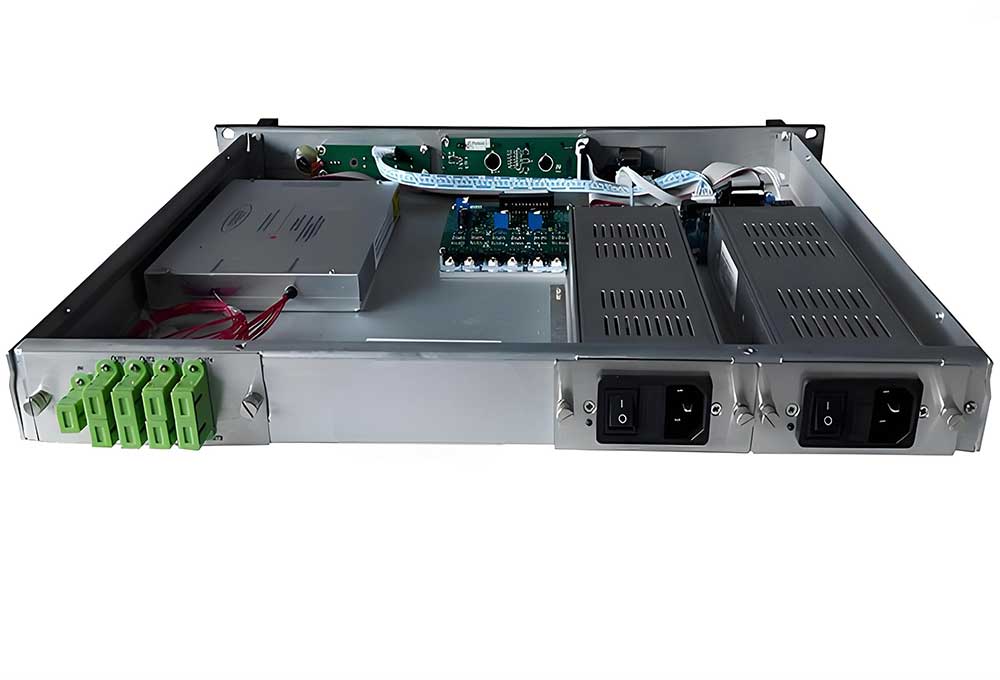

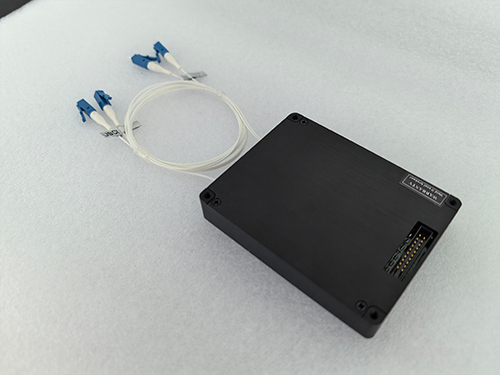

This document specifies the requirements of a DWDM C-band amplifier. The amplifier modules can be operated at constant gain (Automatic Gain Control AGC), constant output power (Automatic Power Control, APC). There are isolators at input and output port. Integrated VOA can be automatically adjusted to achieve smooth gain spectrum for different gain value. It can amplify the C-Band signal with or w/o middle stage access (MSA), which brings great flexibility for the network application. Optical supervisory channel (OSC) is optional function integrated in the module.
This document specifies the requirements of a DWDM C-band amplifier. The amplifier modules can be operated at constant gain (Automatic Gain Control AGC), constant output power (Automatic Power Control, APC). There are isolators at input and output port. Integrated VOA can be automatically adjusted to achieve smooth gain spectrum. Optical supervisory channel (OSC) is optional function integrated in the module, it can be dropped or added.

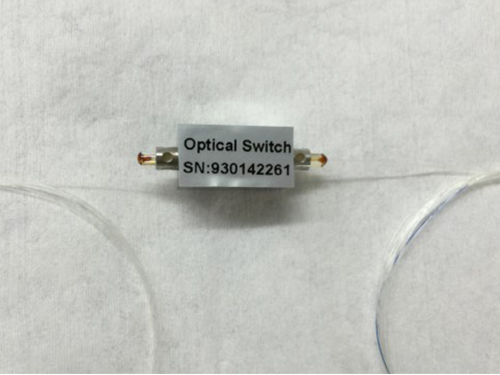

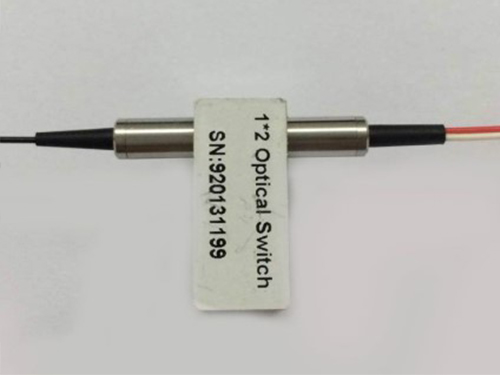

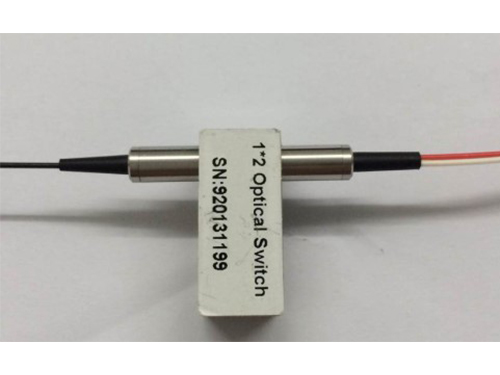

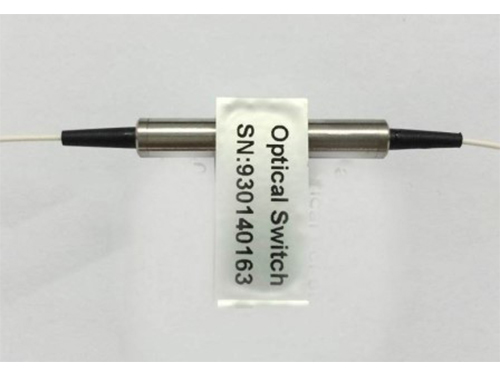

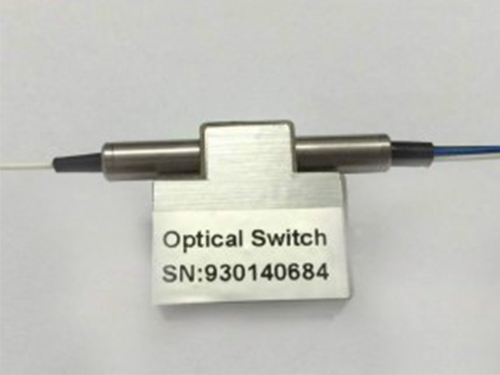

Features ·Unmatched Low Cost ·Low Insertion Loss ·High Channel Isolation ·High Stability, High Reliability ·Epoxy-free on Optical Path ·Latching and Non-latching Applications ·Optical Network Protection/Restoration ·Optical Signal Routing ·Configurable Optical Add/Drop ·Transmitter and Receiver Protection ·Network Test Systems ·Instrumentation

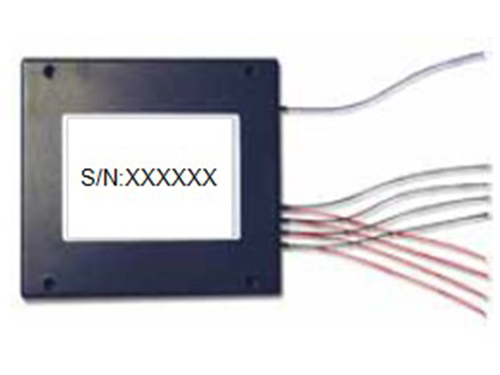

Features ·Low Insertion Loss ·Wide Wavelength Range ·Low Crosstalk ·High Stability, High Reliability ·Epoxy-free on Optical Path ·Latching and Non-latching Applications ·R&D in Laboratory ·System Monitoring ·OADM ·MAN (Metropolitan Area Network)
Features ·Low Insertion Loss ·Wide Wavelength Range ·Low Crosstalk ·High Stability, High Reliability ·Epoxy-free on Optical Path ·Latching and Non-latching Applications ·R&D in Laboratory ·System Monitoring ·OADM ·MAN (Metropolitan Area Network)
Features ·Low Insertion Loss ·Wide Wavelength Range ·Low Crosstalk ·High Stability, High Reliability ·Epoxy-free on Optical Path ·Latching and Non-latching Applications ·R&D in Laboratory ·System Monitoring ·OADM ·MAN (Metropolitan Area Network)
Features ·Low Insertion Loss ·Wide Wavelength Range ·Low Crosstalk ·High Stability, High Reliability ·Epoxy-free on Optical Path ·Latching and Non-latching Applications ·R&D in Laboratory ·System Monitoring ·OADM ·MAN (Metropolitan Area Network)

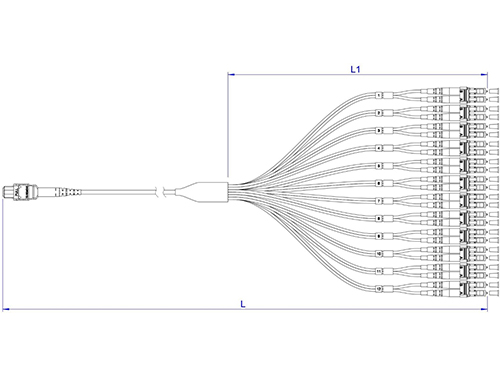

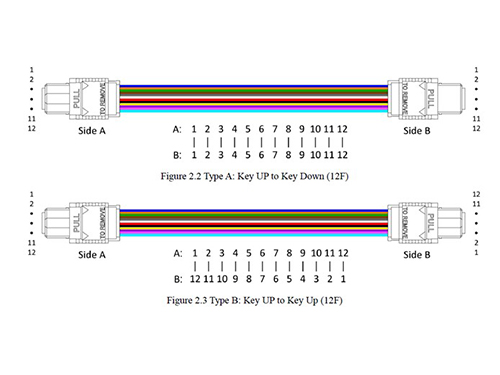

MTP, MPO available 8/12/24/16/32F Fiber SM, OM3/OM4/OM5 available 0.35dB low loss connector Pulling eyes are provided as an option to protect the cable & connector during installation Migration for 10G/40G/100G/200G/400G TIA/IEC standards compliant Comply with RoHS/REACH requirement
MTP, MPO available 8/12/24/16/32F Fiber SM, OM3/OM4/OM5 available 0.35dB low loss connector Pulling eyes are provided as an option to protect the cable & connector during installation Migration for 10G/40G/100G/200G/400G TIA/IEC standards compliant Comply with RoHS/REACH requirement
