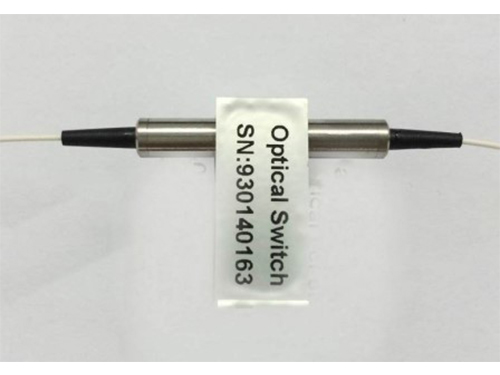

Parameters

Unit

FSW-1×2

Wavelength Range

nm

850±40 / 1300±40

1260 ~ 1650

Test Wavelength

nm

850 / 1300

1310 / 1550

Insertion Loss 1, 2

dB

Typ:0.5

Max:0.8

Type:0.4

Max:0.6

Return Loss 1, 2

dB

MM ≥ 30  SM ≥ 50

Crosstalk 1

dB

MM ≥ 65  SM ≥ 70

PDL

dB

≤0.05

WDL

dB

≤0.25

        Repeatability

dB

≤±0.02

Operating Voltage

V

3.0  or  5.0

        Durability

Cycles

≥ 10 Million

        Switching Time

ms

≤8

Optical Power

mW

≤500

Operating Temperature

℃

-20 ~ +70

Storage Temperature

℃

-40 ~ +85

        Relative Humidity

%

5 ~ 95

        Weight

g

14

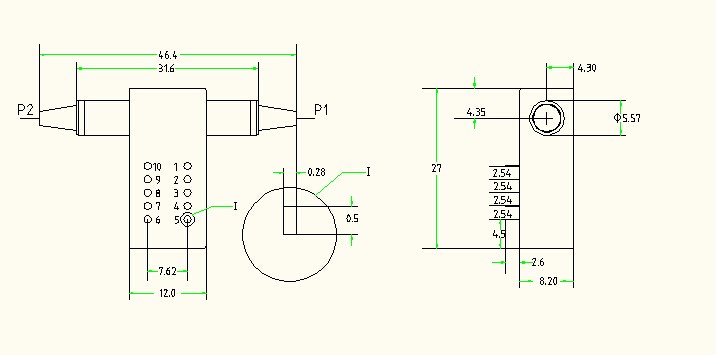

        Dimension

mm

(L)27.0×(W)12.0×(H)8.2 ±0.2 or Customer design

Note: ¹ Within operating temperature and SOP.

²Excluding Connectors.

Type

State

Optical Route

Electric Drive

Status Sensor

1×1

Pin 1

Pin 5

Pin 6

Pin 10

Pin 2-3

Pin 3-4

Pin 7-8

Pin 8-9

Latching

A

Light close

---

---

GND

V+

Close

Open

Open

Close

B

P1-P2

V+

GND

---

---

Open

Close

Close

Open

Non-

latching

A

Light close

---

---

---

---

Close

Open

Open

Close

B

P1-P2

V+

---

---

GND

Open

Close

Close

Open

Specifications

Voltage

Current

Resistance

5V

latching

4.5~5.5 V

36~44 mA

125 Ω

5V

Non-latching

4.5~5.5 V

26~32 mA

175 Ω

3V

latching

2.7~3.3 V

54~66 mA

50 Ω

3V

Non-latching

2.7~3.3 V

39~47 mA

70 Ω

Fiber Type

Voltage

Switch type

Test Wavelength

TubeType

Fiber length

Connector

SM:SM,9/125

3:3V

L:Latching

850:850nm

25:250um

05:0.5m±5cm

FP:FC/PC,FA:FC/APC

M5:MM,50/125

1310:1310nm

90:90um

10:1.0m±5cm

SP:SC/PC,SA:SC/APC

M6:MM,62.5/125

5:5V

N:Non-latching

13/15:1310/1550nm

X:Others

15:1.5m±5cm

LP:LC/PC,LA:LC/APC

X: Others

X:Others

X:Others

OO:None,X:Others
