Features
1. Application
Data Center Interconnect High-Density Cross Connect Backbone Installation
Telecommunication Networks Broadband/CATV Networks Test Labs
LAN/WAN
2. Type
8/12/24/16/32F Fiber: MTP/MPO
Diagram
1.Diagram

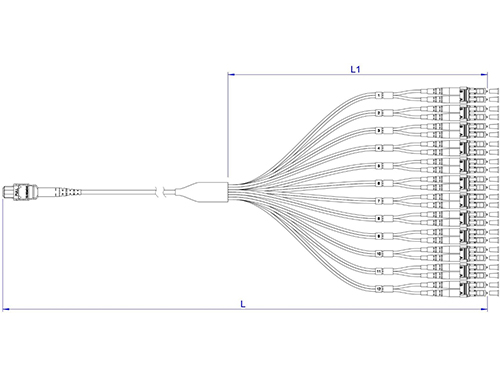

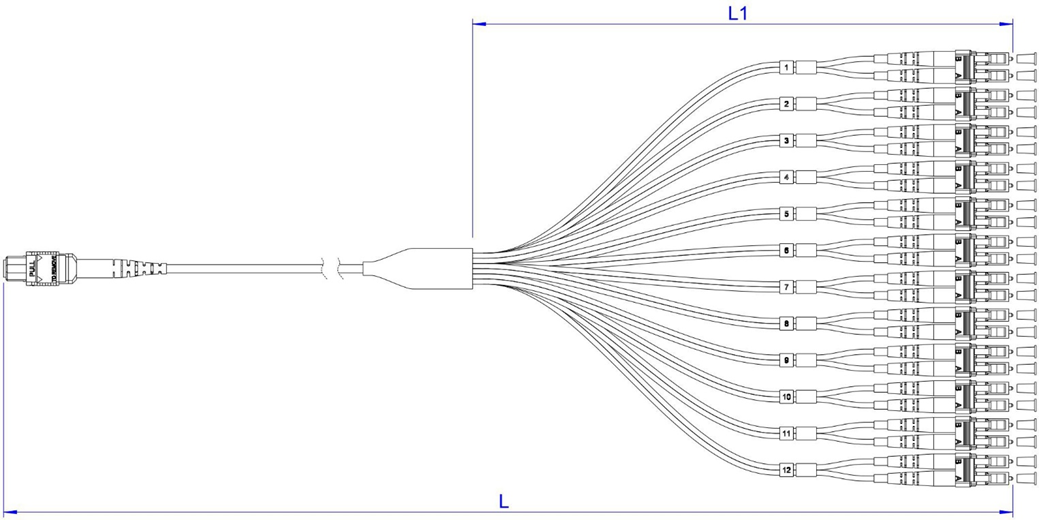

Figure 2.1 MPO-LC Patch Cord
Notes：
•
L≤1m, tolerance=±0.05m. 1
• The connector type in the figure is for reference only, MTP/MPO(Male/Female) connectors are available.

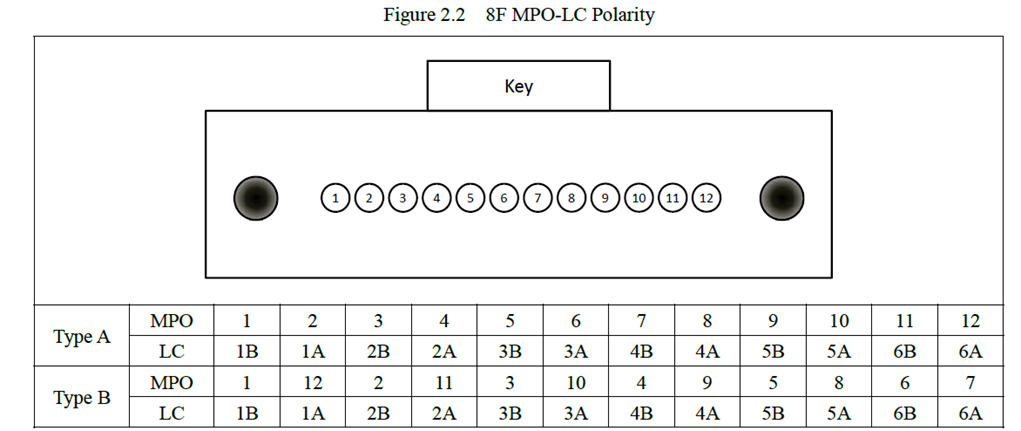

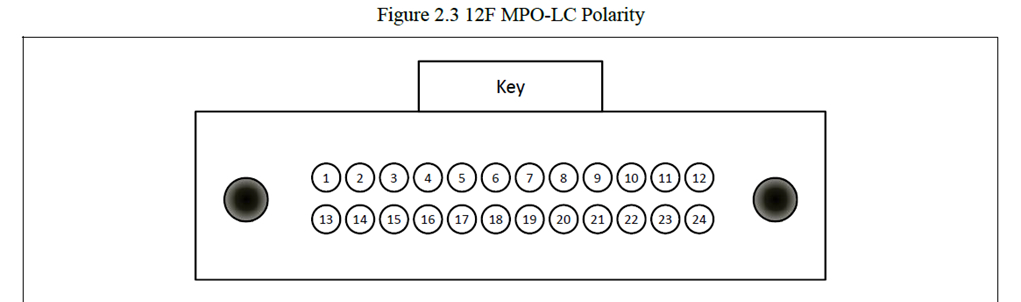

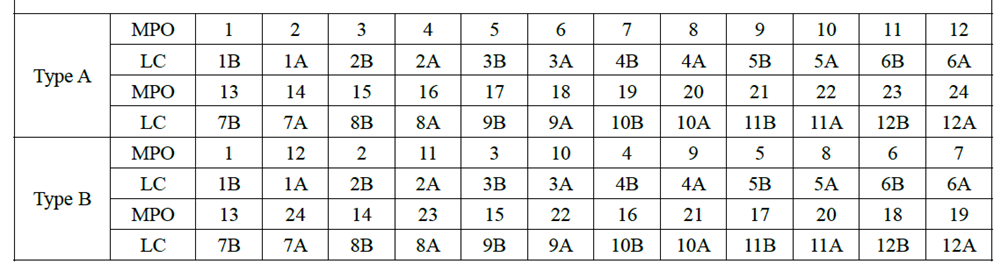

Polarity
Notes：
1. Customized polarity is available.
Optical Performance
Table 3.1 MPO-LC Patch Cord Specification
|
Parameters |
Units |
Specifications |
||
|
Test Wavelength |
nm |
Multi-Mode |
850/1300 |
|
|
Single Mode |
1310/1550 |
|||
|
Fiber Type |
/ |
G657A1/ OM3/OM4/OM5 |
||
|
Cable Outside Diameter |
/ |
Flat cable/Φ3.0mm |
||
|
Cable Jacket |
/ |
LSZH/OFNP/OFNR |
||
|
Jacket Color |
/ |
G657A1 |
Yellow |
|
|
OM3 |
Aqua |
|||
|
OM4 |
Aqua/Violet |
|||
|
OM5 |
Lime Green |
|||
|
Insertion Loss |
dB |
MPO |
Standard Loss |
≤0.70 |
|
Low Loss |
≤0.35 |
|||
|
LC |
≤0.30 |
|||
|
Return Loss |
dB |
Multi-Mode |
≥25 |
|
|
Single Mode |
≥50(PC) ≥60(APC) |
|||
|
Polarity |
/ |
Type A, Type B |
||
|
Operating Temperature |
℃ |
-10~+70 |
||
|
Storage Temperature |
℃ |
-40~+85 |
||
