Parameters

Unit

FSW-1×4

Wavelength Range

nm

850±40 / 1310±40

850±40 or

1310±40

1260~1650

Test Wavelength

nm

850 / 1310

1310/1550,1260~1360,1510~1610

Insertion Loss 1, 2

dB

 Max:1.4

Return Loss 1, 2

dB

MM ≥ 35  SM ≥ 55

Crosstalk 1

dB

MM ≥ 35  SM ≥ 55

PDL

dB

≤0.1

WDL

dB

≤0.30

        Repeatability

dB

≤±0.02

Operating Voltage

V

3.0  or  5.0

        Durability

Cycles

≥ 10 Million

        Switching Time

ms

≤10

Optical Power

mW

≤500

Operating Temperature

℃

0 ~ +70

Storage Temperature

℃

-40 ~ +85

        Relative Humidity

%

5 ~ 95

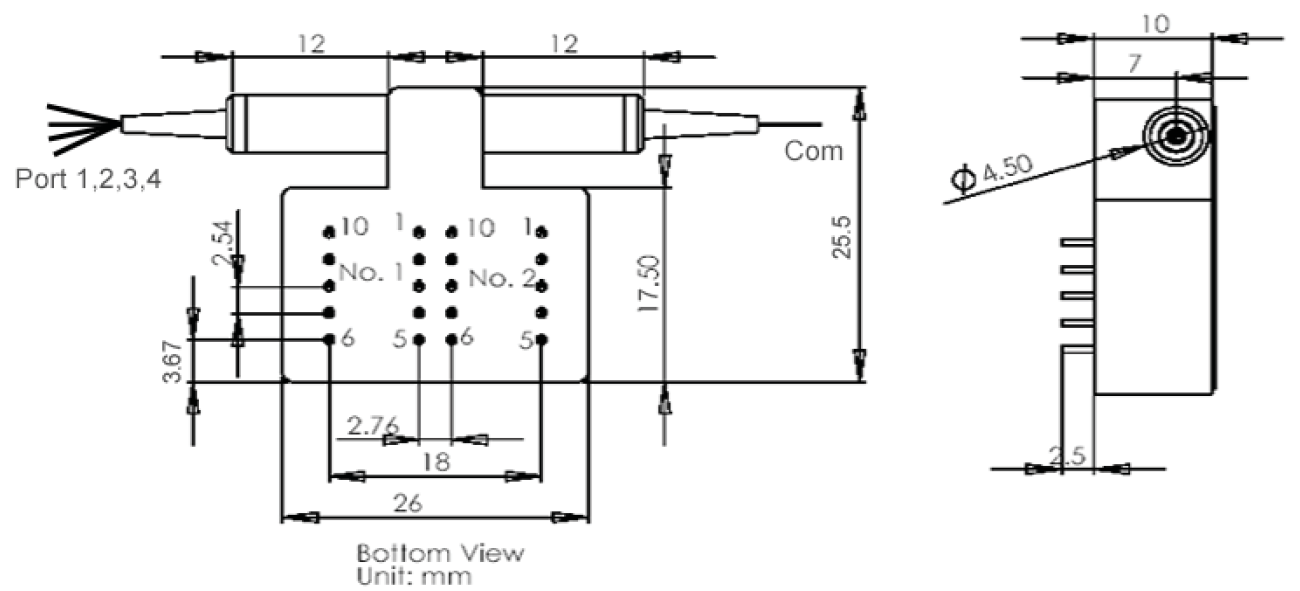

        Dimension

mm

(L)26.0×(W)25.5×(H)10.3 or Customer design

Note: ¹ Within operating temperature and SOP.

²Excluding Connectors.

Type

State

Electric Drive

Status Sensor

1×4

Pin 1

Pin 5

Pin 6

Pin 10

Pin 2-3

Pin 3-4

Pin 7-8

Pin 8-9

Latching

0(Reset)

GND

GND

GND

V+

Close

Open

Open

Close

1(Set)

V+

GND

GND

GND

Open

Close

Close

Open

Non-

latching

0(Reset)

---

---

---

---

Close

Open

Open

Close

1(set)

V+

---

---

GND

Open

Close

Close

Open

Relay No.

1 Relay

2 Relay

Switch status

Relay Status

0

0

Com-Port1

1

0

Com-Port2

0

1

Com-Port3

1

1

Com-Port4

Fiber Type

Voltage

Switch type

Test Wavelength

TubeType

Fiber length

Connector

SM:SM,9/125

3:3V

L:Latching

850:850nm

25:250um

05:0.5m±5cm

FP:FC/PC,FA:FC/APC

M5:MM,50/125

1310:1310nm

90:90um

10:1.0m±5cm

SP:SC/PC,SA:SC/APC

M6:MM,62.5/125

5:5V

N:Non-latching

13/15:1310/1550nm

X:Others

15:1.5m±5cm

LP:LC/PC,LA:LC/APC

X: Others

X:Others

X:Others

OO:None,X:Others
