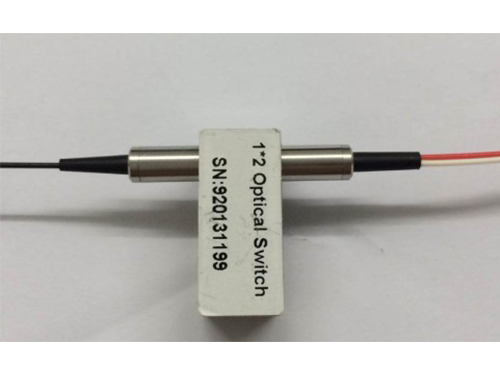

Parameters

Unit

FSW-1×2

Wavelength Range

nm

650~1310

Test Wavelength

nm

650/780/850/980/1064/1310

Insertion Loss 1, 2

dB

Type:0.6

Max:1.0

Return Loss 1, 2

dB

SM ≥ 30

Crosstalk 1

dB

SM ≥ 35

PDL

dB

≤0.05

WDL

dB

≤0.25

        Repeatability

dB

≤±0.02

Operating Voltage

V

3.0  or  5.0

        Durability

Cycles

≥ 10 Million

        Switching Time

ms

≤8

Optical Power

mW

≤500

Operating Temperature

℃

-20 ~ +70

Storage Temperature

℃

-40 ~ +85

        Relative Humidity

%

5 ~ 95

        Weight

g

14

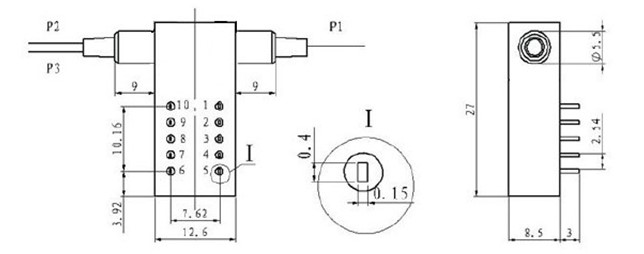

        Dimension

mm

(L)27.0×(W)12.6×(H)8.5 ±0.2

Note: ¹ Within operating temperature and SOP.

²Excluding Connectors.

Type

State

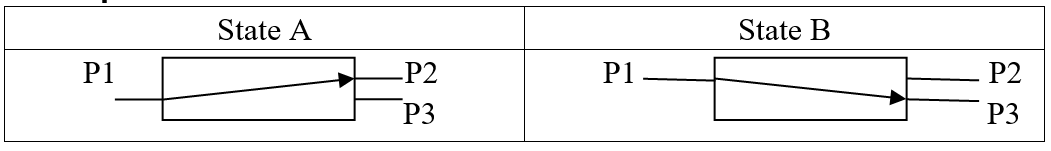

Optical Route

Electric Drive

Status Sensor

1×2

Pin 1

Pin 5

Pin 6

Pin 10

Pin 2-3

Pin 3-4

Pin 7-8

Pin 8-9

Latching

A

P1-P2

  V+

GND

---

---

Open

Close

Close

Open

B

P1-P3

---

---

GND

V+

Close

Open

Open

Close

Non-

latching

A

P1-P2

---

---

---

---

Open

Close

Close

Open

B

P1-P3

---

GND

V+

---

Close

Open

Open

Close

Specifications

Voltage

Current

Resistance

5V

latching

4.5~5.5 V

36~44 mA

125 Ω

5V

Non-latching

4.5~5.5 V

26~32 mA

175 Ω

3V

latching

2.7~3.3 V

54~66 mA

50 Ω

3V

Non-latching

2.7~3.3 V

39~47 mA

70 Ω

Fiber Type

Voltage

Switch type

Test Wavelength

TubeType

Fiber length

Connector

M5:MM,

50/125

3:3V

L:Latching

65:650nm 78:780nm

25:250um

05:0.5m±5cm

FP:FC/PC,FA:FC/APC

85:850nm 98:980nm

90:90um

10:1.0m±5cm

SP:SC/PC,SA:SC/APC

M6:MM,62.5/125

5:5V

N:Non-latching

1064:1064nm

20:2.0mm

15:1.5m±5cm

LP:LC/PC,LA:LC/APC

X: Others

13:1310nm

30:3.0mm

X:Others

OO:None,X:Others
