Application
Data Center Interconnect High-Density Cross Connect Backbone Installation
Telecommunication Networks Broadband/CATV Networks
Test Labs LAN/WAN
Type
8/12/24/16/32F Fiber: MTP/MPO
Diagram
1. Diagram

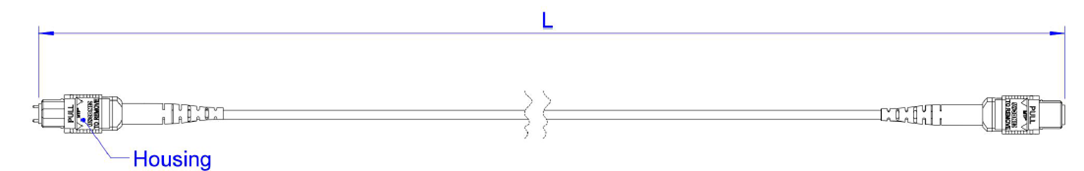

Figure 2.1 MTP-MTP Patch Cord
Notes：
1. L≤1m, tolerance=±0.05m. 1
2. The connector type in the figure is for reference only, MTP/MPO(Male/Female) connectors are available.
3. Customized polarity is available.

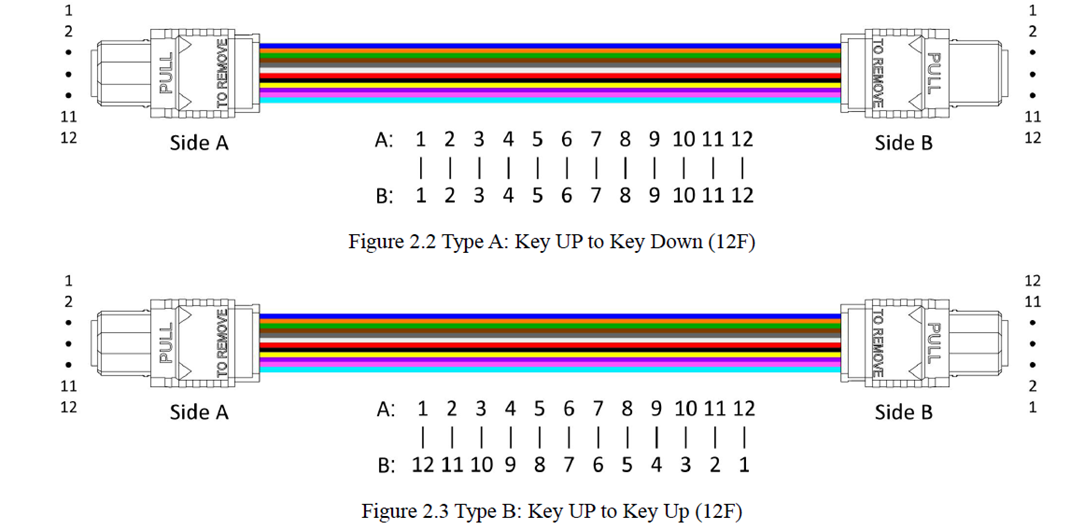

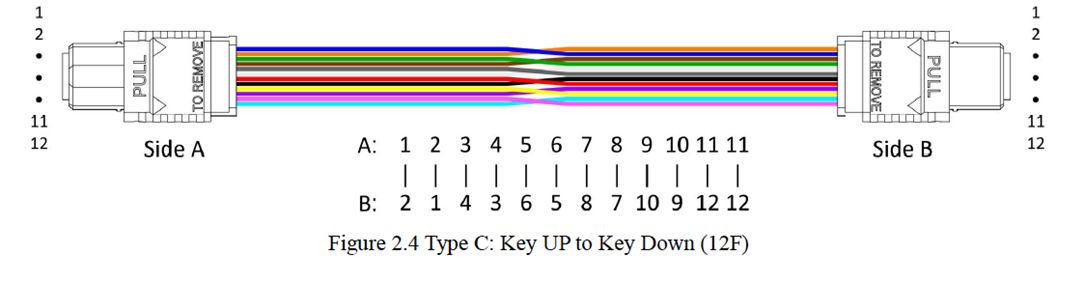

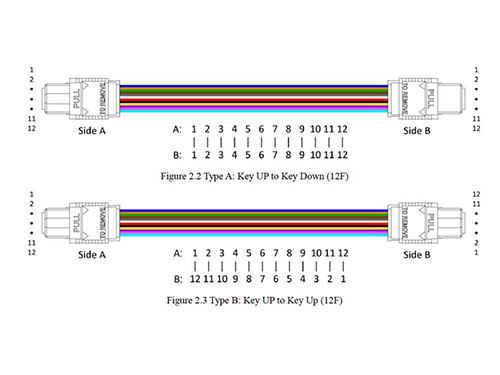

2. 12F Polarity

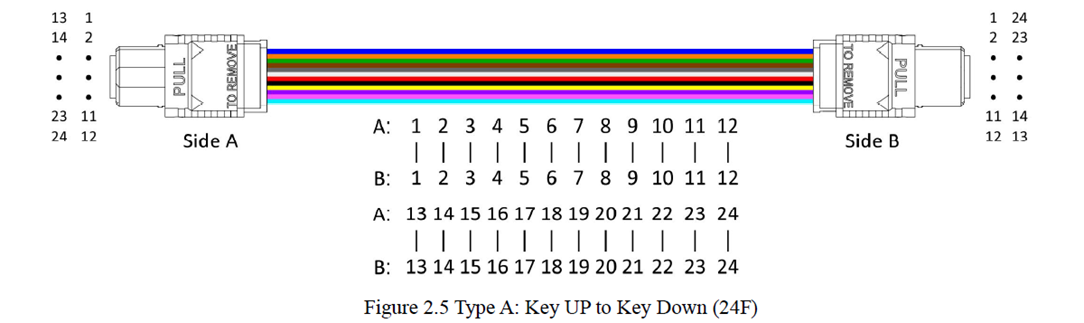

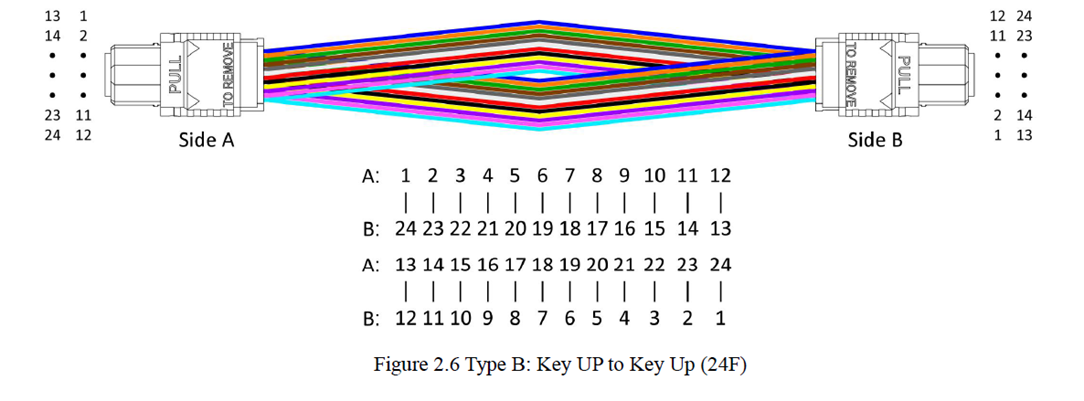

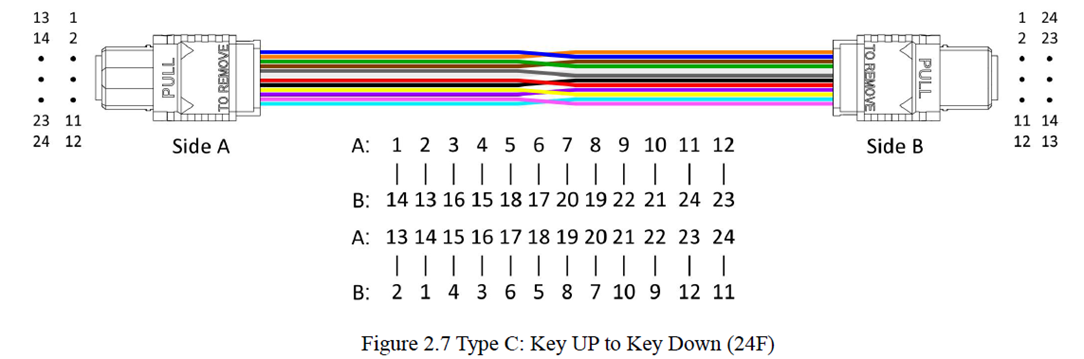

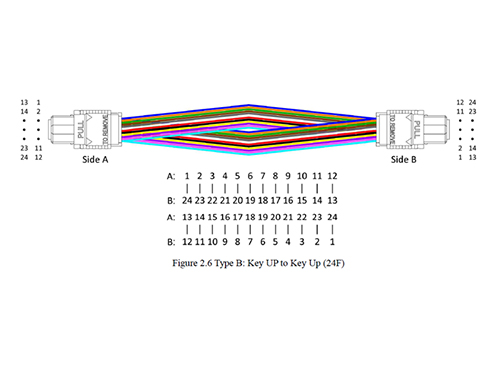

3.24F Polarity
Optical Performance
SHAPE * MERGEFORMAT
Parameters
Units
Specifications
Test Wavelength
nm
Multi-Mode
850/1300
Single Mode
1310/1550
Fiber Type
/
G657A1/ OM3/OM4/OM5
Cable Outside Diameter
/
Ribbon/Flat cable/Φ3.0mm etc.
Cable Jacket
/
LSZH/OFNP/OFNR
Jacket Color
/
G657A1
Yellow
OM3
Aqua
OM4
Aqua/Violet
OM5
Lime Green
Insertion Loss
dB
Standard Loss
≤0.70
Low Loss
≤0.35
Return Loss
dB
Multi-Mode
≥25
Single Mode
≥50(PC)
≥60(APC)
Polarity
/
TIA-568.3 Type A, Type B, Type C
Operating Temperature
℃
-10~+70
Storage Temperature
℃
-40~+85
Table 3.1 MPO-MPO Patch Cord Specification
