PRODUCT FEATURES  Data rate up to 850Gbps (8x PAM4 53.125 GBd)  High speed I/O electrical interface (800GAUI-8)  Support 6 applications: o 800GBASE-SR8 o 400GBASE-SR8 o 200GBASE-SR8 o 8x100GBASE-SR1 o 2x 400GBASE-SR4 o 4x 200GBASE-SR2  Compliant to OSFP MSA Rev5.0  Maximum link length of 60m on OM3 or 100m on OM4  8x VCSEL arrays and 8x PIN PD arrays  Optical connector: MPO -16(APC) or 2x MPO -12(APC)  Power Consumption: <16W  Management interface: CMIS 5.2  +3.3V single power supply  Case operating temperature Commercial: 0°C to +70°C

PRODUCT FEATURES  Supports 800Gb/s aggregate bit rate  8x53.125GBd(PAM4)electrical interface  Maximum link length of 50m on OM4 Multimode Fiber (MMF)  Hot-pluggable QSFP-DD footprint  Single MPO-16(APC) receptacle  Low power Consumption  RoHS-6 compliant and lead-free  +3.3V single power supply  Support Digital Diagnostic Monitor interface  Case operating temperature Commercial: 0°C to +70°C

QSFP-DD(112)(quad small form-factor pluggable double density) doubles the density of QSFP interconnects with an eight-lane electrical interface capable of 56 Gbps NRZ or 112 Gbps PAM-4 to achieve 400 or 800 Gbps aggregate per port. The QSFP-DD (112) portfolio’s backwards compatibility allows existing QSFP112 modules to be plugged into QSFP-DD(112) ports, provide low loss, less skew and better NEXT. providing superior thermal and signal integrity performance.

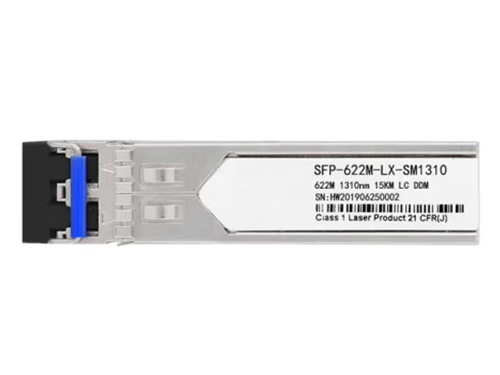

PRODUCT FEATURES  Up to 622Mbps Data Links  1310nm FP laser transmitter and PIN/TIA receiver  Maximum link length of 15km on 9/125um SMF  Hot-pluggable SFP footprint  Duplex LC receptacles  Low power dissipation  RoHS compliant and lead-free  Support Digital Diagnostic Monitor interface  Single +3.3V power supply  Compliant with SFF-8472

PRODUCT FEATURES  Up to 622Mbps Data Links  1550nm DFB laser transmitter and PIN/TIA receiver  Maximum link length of 80km on 9/125um SMF  Hot-pluggable SFP footprint  Duplex LC receptacles  Low power dissipation  RoHS compliant and lead-free  Support Digital Diagnostic Monitor interface  Single +3.3V power supply  Compliant with SFF-8472

PRODUCT FEATURES  Up to 622Mbps Data Links  1310nm DFB laser transmitter and PIN/TIA receiver  Maximum link length of 40km on 9/125um SMF  Hot-pluggable SFP footprint  Duplex LC receptacles  Low power dissipation  RoHS compliant and lead-free  Support Digital Diagnostic Monitor interface  Single +3.3V power supply  Compliant with SFF-8472

PRODUCT FEATURES  Supports 400Gb/s aggregate bit rate  8x50G PAM4 retimed 400GAUI-8 electrical interface  Up to 500m on SMF with FEC  Hot-pluggable QSFP-DD form factor  MPO-12 connector with 8°angled end-face  QSFP-DD MSA compliant  Compliant with CMIS5.2  IEE802.3bs 400GBASE-DR4 Specification compliant  Low power Consumption < 10.5W  Case operating temperature Commercial: 0°C to +70°C

Product Features ● QSFP-DD MSA rev5.0 compliant ● 100G Lambda MSA compliant ● 802.3cu compliant ● 400GE FR4 specification compliant ● QSFP-DD CMIS4.0 management interface compliant ● Non-hermetic package design ● 4 CWDM lanes MUX/DEMUX design ● 8 x 53.125 Gbps PAM4 electrical interface (400GAUI-8) ● Maximum power consumption 12 W ● LC duplex connector ● 425 Gbps aggregate bit rate ● Up to 2 km transmission on single mode fiber with FEC ● Single 3.3 V power supply ● RoHS 2 compliant

PRODUCT FEATURES  Supports 400Gb/s aggregate bit rate  Maximum link length of 100m on OM4 Multimode Fiber (MMF)  Hot-pluggable QSFP-DD footprint  Low power Consumption  RoHS-6 compliant and lead-free  +3.3V single power supply  8x50G PAM4 retimed 400GAUI-8 Electrical interface aligned with IEEE 802.3bs  Support Digital Diagnostic Monitor interface  Case operating temperature Commercial: 0°C to +70°C

PRODUCT FEATURES  200Gb/s to 2x100Gb/s data rate  4x26.5625GBd(PAM4)electrical interface  VCSEL Transmitter  PIN and TIA array on the receiver side  Hot-pluggable QSFP56 footprint  Low power Consumption  RoHS-6 compliant and lead-free  +3.3V single power supply  Support Digital Diagnostic Monitor interface  Case operating temperature Commercial: 0°C to +70°C

PRODUCT FEATURES  Up to 26.5625Gbps data rate per channel by PAM4 modulation  4 duplex channels transmitters and receivers  Integrated CWDM LD and PD array  Single +3.3V power supply  DDM function implemented  Hot-pluggable QSFP56 form factor  Transmission length up to 2km  Low power dissipation:<6.5W  International class 1 lasar safety certified  Operating temperature range: 0℃ ~ +70 ℃  Compliant with ROHS10

PRODUCT FEATURES  Supports 212.5Gb/s aggregate bit rate  4x26.5625GBd(PAM4)electrical interface  VCSEL Transmitter  PIN and TIA array on the receiver side  Hot-pluggable QSFP56 footprint  Low power Consumption  RoHS-6 compliant and lead-free  +3.3V single power supply  Support Digital Diagnostic Monitor interface  Case operating temperature Commercial: 0°C to +70°C
