Parameters

Unit

FSW-2×2A

Wavelength Range

nm

1260 ~ 1650

Test Wavelength

nm

1310 /1550

Insertion Loss 1, 2

dB

Type:0.8

Max:1.0

Return Loss 1, 2

dB

SM ≥ 50

Crosstalk 1

dB

SM ≥ 55

PDL

dB

≤0.05

WDL

dB

≤0.25

        Repeatability

dB

≤±0.02

Operating Voltage

V

3.0  or  5.0

        Durability

Cycles

≥ 10 Million

        Switching Time

ms

≤8

Optical Power

mW

≤500

Operating Temperature

℃

-20 ~ +70

Storage Temperature

℃

-40 ~ +85

        Relative Humidity

%

5 ~ 95

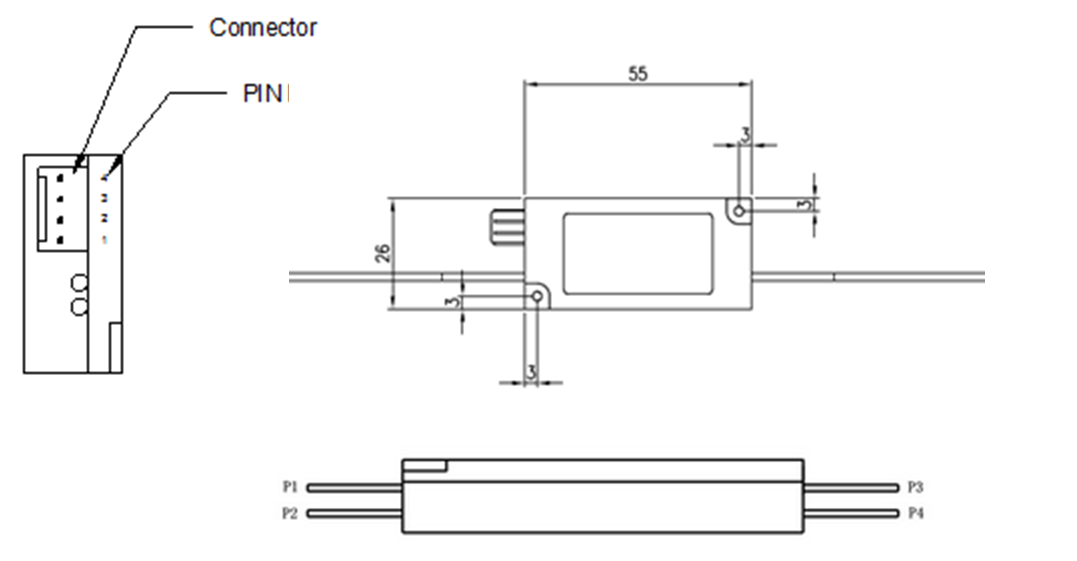

        Dimension

mm

(L)55×(W)26×(H)10.8 ±0.2 or Customer design

Note: ¹ Within operating temperature and SOP.

²Excluding Connectors.

#of PIN

Signal name

Descriptions

I/O

Level

Remards

1

3V/5V

PO

PO

2

OSU-EN

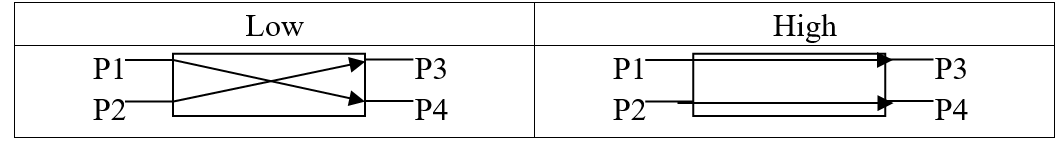

High=Normal,Low or Open:Bypass

DO

TTL

High=Normal,Low or Open:Bypass

3

GND

4

NC
