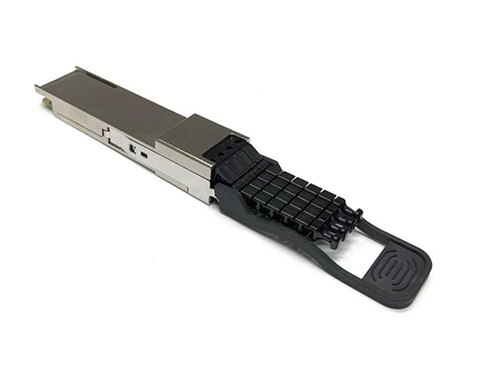

APPLICATIONS
l 25/100G Ethernet
l InfiniBand QDR,EDR
COMPLIANCE
l QSFP28 MSA.
l IEEE802.3bm
l SFF-8636
l RoHS
Ordering information
Part No. |
Bit Rate (Gbps) |
Wavelength (nm) |
Distance(m) |
Fiber Type |
DDMI |
Connector |
Temp(℃) |
ESBQCM85-S10C |
4x25.78125 |
850 |
100 |
MMF |
YES |
MDC |
0~70 |

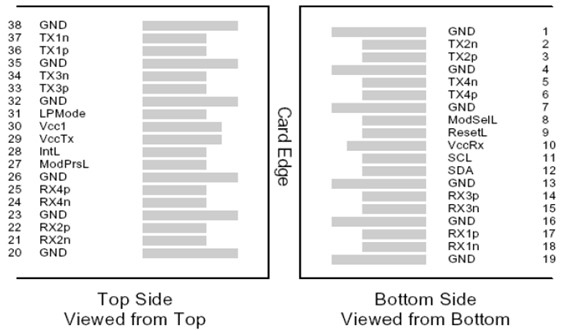

I. Pin Diagram
II. Pin Descriptions
Pin |
Symbol |
Name/Description |
Ref. |
1 |
GND |
Ground |
1 |
2 |
Tx2n |
Transmitter Inverted Data Input |
|
3 |
Tx2p |
Transmitter Non-Inverted Data Input |
|
4 |
GND |
Ground |
1 |
5 |
Tx4n |
Transmitter Inverted Data Input |
|
6 |
Tx4p |
Transmitter Non-Inverted Data Input |
|
7 |
GND |
Ground |
1 |
8 |
ModSe1L |
Module Select |
|
9 |
ResetL |
Module Reset |
|
10 |
Vcc Rx |
+3.3V Power supply receiver |
|
11 |
SCL |
2-wire serial interface clock |
|
12 |
SDA |
2-wire serial interface data |
|
13 |
GND |
Ground |
1 |
14 |
Rx3p |
Receiver Non-Inverted Data Output |
|
15 |
Rx3n |
Receiver Inverted Data Output |
|
16 |
GND |
Ground |
1 |
17 |
Rx1p |
Receiver Non-Inverted Data Output |
|
18 |
Rx1n |
Receiver Inverted Data Output |
|
19 |
GND |
Ground |
1 |
20 |
GND |
Ground |
1 |
21 |
Rx2n |
Receiver Inverted Data Output |
|
22 |
Rx2p |
Receiver Non-Inverted Data Output |
|
23 |
GND |
Ground |
1 |
24 |
Rx4n |
Receiver Inverted Data Output |
|
25 |
Rx4p |
Receiver Non-Inverted Data Output |
|
26 |
GND |
Ground |
1 |
27 |
ModPrSL |
Module Present |
|
28 |
IntL |
Interrupt |
|
29 |
VccTx |
+3.3V Power supply transmitter |
|
30 |
Vcc1 |
+3.3V Power Supply |
|
31 |
LPMode |
Low Power Mode |
|
32 |
GND |
Ground |
1 |
33 |
Tx3p |
Transmitter Non-Inverted Data Input |
|
34 |
Tx3n |
Transmitter Inverted Data Input |
|
35 |
GND |
Ground |
1 |
36 |
Tx1p |
Transmitter Non-Inverted Data Input |
|
37 |
Tx1n |
Transmitter Inverted Data Input |
|
38 |
GND |
Ground |
1 |
Note:
1.Circuit ground is internally isolated from chassis ground.
III. Absolute Maximum Ratings
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Ref. |
Storage Temperature |
TS |
-40 |
|
85 |
ºC |
|
Case Operating Temperature |
TO |
0 |
|
75 |
ºC |
|
Storage Ambient Relative Humidity |
HA |
5 |
|
85 |
% |
|
Maximum Supply Voltage |
VCC |
-0.5 |
|
3.6 |
V |
|
Receiver Damage Threshold |
|
+3.4 |
|
|
dBm |
|
IV. General Product Characteristics
Data Rate Spcifications |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Ref. |
Bit Rate(all wavelength combined) |
BR |
|
|
103.1 |
Gb/s |
1 |
Bit Error Ratio(pre-FEC) |
BER |
|
|
10-5 |
|
2 |
Link distance on OM3 MMF |
d |
|
|
70 |
meters |
3 |
Link distance on OM4 MMF |
d |
|
|
100 |
meters |
3 |
Notes:
1.Supports 100GBASE-SR4 per IEEE 802.3bm.
2. Tested with a PRBS 231-1 test pattern.
3. Requires FEC on the host to support maximum distance, per 100GBASE-SR4.
V. Optical Characteristics
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Ref. |
Transmitter(per lane) |
||||||
Average Output Power per lane |
POUT |
-6 |
|
2.4 |
dBm |
|
Extinction Ratio |
ER |
2 |
|
|
dB |
|
Center Wavelength |
λC |
840 |
850 |
860 |
nm |
|
RMS Spectral Width |
σ |
|
|
0.6 |
nm |
|
Transmitter OFF Output Power |
POff |
|
|
-30 |
dBm |
|
Transmitter eye mask definition {X1,X2,X3,Y1,Y2,Y3} |
|
{0.3,0.38,0.45,0.35,0.41,0.5} |
|
1 |
||
Receiver(per lane) |
||||||
Input Optical Wavelength |
λIN |
840 |
850 |
860 |
nm |
|
Rx Sensitivity(OMA) per lane |
RSENS |
|
|
-10.3 |
dBm |
BER@5E-5 |
Input Saturation Power (Overload) |
PIN |
+2.4 |
|
|
dBm |
|
Receiver Reflectance |
Rfl |
|
|
-12 |
dBm |
|
Loss of Signal Assert |
PA |
-30 |
|
|
dBm |
|
Loss of Signal De-assert |
PD |
|
|
-12 |
dBm |
|
LOS Hysteresis |
PD - PA |
0.5 |
|
6 |
dB |
|
Note:
1. Hit Ratio 1.5x10-3 hit/sample.
VI. Digital Diagnostic Functions
ESBQCM85-S10C QSFP28 transceivers support the I2C-based diagnostics interface specified by the QSFP28 MSA.
VII. Electrical Interface Characteristics
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Ref. |
Input Logic Level High |
VIH |
3.15 |
|
VCC +0.3 |
V |
|
Input Logic Level Low |
VIL |
VEE -0.3 |
|
0.8 |
V |
|
Output Logic Level High |
VOH |
2.0 |
|
VCC +0.3 |
V |
|
Output Logic Level Low |
VOL |
0 |
|
0.4 |
V |
|
Transmitter |
||||||
Signaling rate per lane |
|
25.78125±100ppm |
Gb/s |
|
||
Differential pk-pk input voltage tolerance |
Vin,pp,diff |
200 |
|
1000 |
mV |
|
Input Differential Impedance |
ZIN |
90 |
100 |
110 |
Ω |
|
Receiver |
||||||
Signaling rate per lane |
|
25.78125±100ppm |
Gb/s |
|
||
Differential pk-pk input voltage tolerance |
Vin,pp,diff |
200 |
|
1000 |
mV |
|
Input Differential Impedance |
ZIN |
90 |
100 |
110 |
Ω |
|

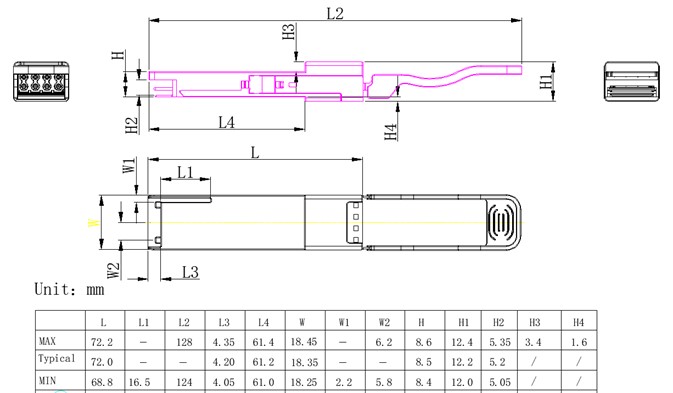

VIII.Mechanical Specifications(Unit: mm)
