LPQQAA31-M(L)xxC
LPQQAA31-M(L)xxC

LPQQAA31-M(L)xxC

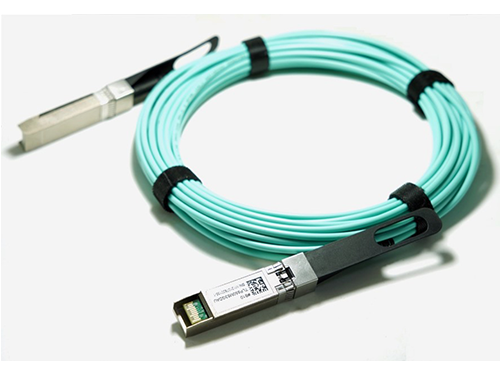

    PRODUCT FEATURES
     Electrical interface compliant to DSFP Module
    Specification Rev. 1.0
     Maximum link length of 70m on OM3 MMF and
    100m on OM4 MMF
     Hot-pluggable DSFP form factor
     Power consumption less than 2.2W
     RoHS compliant and lead-free
     Support Digital Diagnostic Monitor interface
     +3.3V Single power supply
     Case operating temperature
    Commercial: 0°C to +70°C
Inquire now
  • Product Detail

APPLICATIONS

l  100GBASE-SR2  Ethernet

l  Servers, switches, storage and host card adapters

l  Other optical links

Compliance

l  DSFP MSA

l  CMIS V4.0

l  RoHS

Ordering information

Package

Product part NO.

Distance

Temperature Range

DSFP56

ESQQAA31-L03C

0.3-metercable

Commercial:0~70℃

DSFP56

ESQQAA31-M01C

1-metercable

Commercial:0~70℃

DSFP56

ESQQAA31-M03C

3-metercable

Commercial: 0~70℃

DSFP56

ESQQAA31-M05C

5-metercable

Commercial: 0~70℃

DSFP56

ESQQAA31-M06C

6-metercable

Commercial: 0~70℃

DSFP56

ESQQAA31-M10C

10-metercable

Commercial: 0~70℃

DSFP56

ESQQAA31-M15C

15-metercable

Commercial: 0~70℃

DSFP56

ESQQAA31-M20C

20-metercable

Commercial: 0~70℃

DSFP56

ESQQAA31-M25C

25-metercable

Commercial: 0~70℃

DSFP56

ESQQAA31-M30C

30-metercable

Commercial: 0~70℃

DSFP56

ESQQAA31-M50C

50-metercable

Commercial: 0~70℃

DSFP56

ESQQAA41-S10C

100-metercable

Commercial: 0~70℃

*For availability of additional cable lengths, please contact Esion

I.

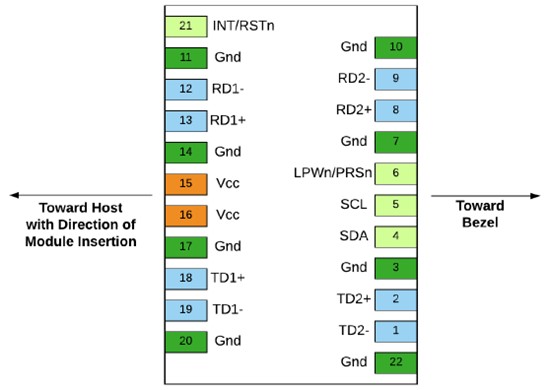

Pin Diagram


Pin out of Connector Block on Host Board

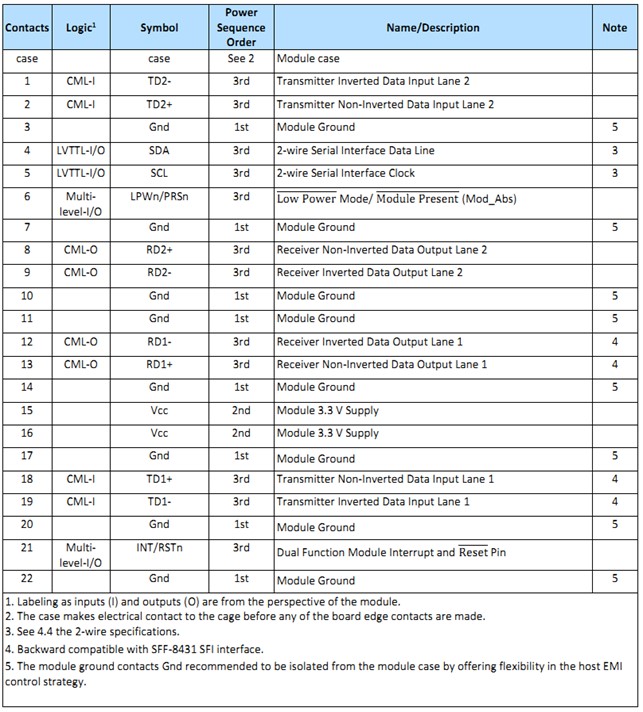

II.     Pin Descriptions

III.   Absolute Maximum Ratings

Parameter

Symbol

Min.

Type

Max.

Unit

Ref.

Maximum Supply Voltage

Vcc

-0.5

3.6

V

Storage Temperature

TS

-40

85

℃

1

Case Operating Temperature

TOP

0

70

℃

Relative Humidity

RH

0

85

%

2

Notes:

1.Limited by the fiber cable jacket, not the activeends.

2.Non-condensing.

IV.  Electrical Characteristics (TOP = 0 to 70C, VCC = 3.3 ± 5% Volts)

Parameter

Symbol

Min.

Type

Max.

Unit

Ref.

Power Supply Voltage

Vcc

3.135

3.3

3.465

V

Power Supply Current

Icc

-

700

mA

Transmitter

Signaling rate (each lane)

SR

26.5625 ± 100 ppm

GBPS


Differential data input voltage per lane

Vin,pp,diff

900

-

-

mV


Differential termination mismatchal

-

-

-

10

%


Single-ended voltage tolerance range

-

-0.4

-

3.3

V


DC common mode voltage

-

-350

-

2850

mV


Receiver

Signaling rate (each lane)

SR

26.5625 ± 100 ppm

GBd


Error Bit Rate

BER

-

-

2.4E-4

/

1

Differential output voltage

-

-

-

900

mV


Near-end ESMW (Eye symmetry mask width)

-

0.265

-

-

UI


Near-end Eye height, differential (min)

-

70

-

-

mV


Far-end ESMW (Eye symmetry mask width)

-

0.2

-

-

UI


Far-end Eye height, differential (min)

-

30

-

-

mV


Differential termination mismatch

-


-

10

%


Transition time (min, 20% to 80%)

-

9.5

-

-

ps


DC common mode voltage

-

-350

-

2850

mV






























Note: 1  PRBS31Q@26.5625Gbd PAM4

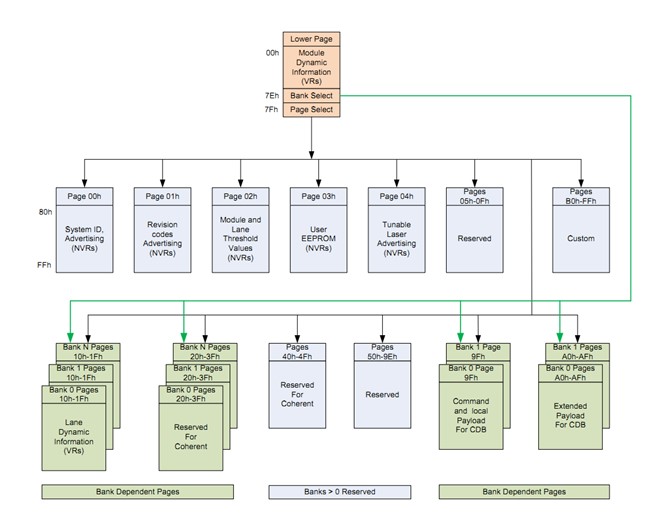

V.     Digital Diagnostic Memory Map

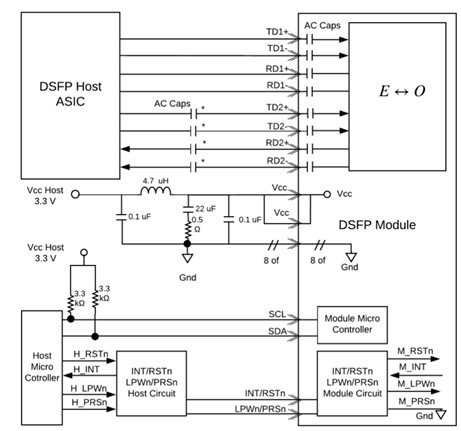

VI. Recommended Interface Circuit

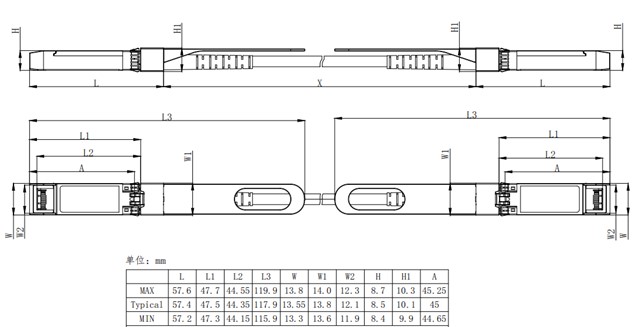

VII.     Mechanical Dimensions

DSFP wire mechanical drawing(Unit: mm)

Cable Mechanical Specifications

Parameter

Value

    Units

Diameter

3

mm

Minimum bend radius

30

mm

Length tolerance

Length < 1 m:              +10 /-0

cm

1 m ≤length ≤ 4.5 m:     +20 / -0

cm

5 m ≤length ≤ 14.5 m:    +40 / -0

cm

Length≥15.0 m            +3% / -0

m

Cable color

Aqua(OM3),Megenta(OM4)
