Type

Parameters

Unit

Parameters

Channel Spacing

GHZ

100

Wavelength range

C-or L-band ITU channels 186.6 to 196.1THz

Passband

≥+/-12.5

Transmission passband ripple

dB

≤0.40

Transmission insertion loss

dB

≤1.0

Reflection passband ripple

dB

≤0.20

Reflection insertion loss

dB

≤0.40

Transmission isolation (adj channel)

dB

≥30

Transmission isolation (non-adj channel)

GHZ

≥50

Reflection isolation

dB

≥12

Polarization dependent loss

dB

≤0.2

Polarization mode dispersion

ps

≤0.2

Directivity

dB

≥50

Return loss

dB

≥45

PDL

dB

≤0.15

PMD

ps

≤0.1

Wavelength thermal stability

nm℃

≤0.003

Insertion loss thermal stability

dB/℃

≤0.005

Operating Temperature

℃

-5~ +70

Storage temperature

-40+~85

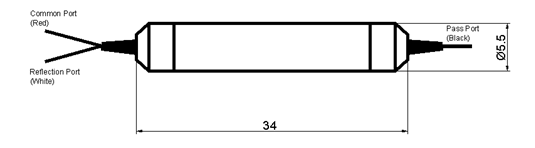

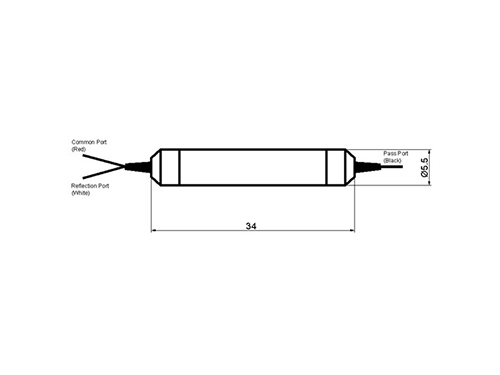

Dimension

mm

55X34(250 um)

Customer Design

Note: The above specification is without connector.

Pigtail Type

Length

Connector

PackageSize

1,250um

2,900um

3,others

0.5:0.5m

1:1m

3:Others

FP:FC/PC,FC:FC/APC

SP:SC/PC,SA:SC/APC

LP:LC/PC,LA:LC/APC

OO :None X：Others

1:5.5X34

2:others
