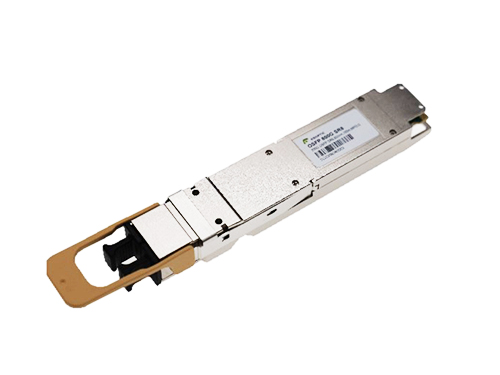

PRODUCT FEATURES  Data rate up to 850Gbps (8x PAM4 53.125 GBd)  High speed I/O electrical interface (800GAUI-8)  Support 6 applications: o 800GBASE-SR8 o 400GBASE-SR8 o 200GBASE-SR8 o 8x100GBASE-SR1 o 2x 400GBASE-SR4 o 4x 200GBASE-SR2  Compliant to OSFP MSA Rev5.0  Maximum link length of 60m on OM3 or 100m on OM4  8x VCSEL arrays and 8x PIN PD arrays  Optical connector: MPO -16(APC) or 2x MPO -12(APC)  Power Consumption: <16W  Management interface: CMIS 5.2  +3.3V single power supply  Case operating temperature Commercial: 0°C to +70°C

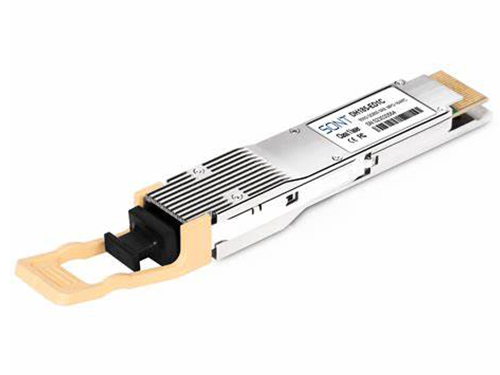

PRODUCT FEATURES  Supports 800Gb/s aggregate bit rate  8x53.125GBd(PAM4)electrical interface  Maximum link length of 50m on OM4 Multimode Fiber (MMF)  Hot-pluggable QSFP-DD footprint  Single MPO-16(APC) receptacle  Low power Consumption  RoHS-6 compliant and lead-free  +3.3V single power supply  Support Digital Diagnostic Monitor interface  Case operating temperature Commercial: 0°C to +70°C

QSFP-DD(112)(quad small form-factor pluggable double density) doubles the density of QSFP interconnects with an eight-lane electrical interface capable of 56 Gbps NRZ or 112 Gbps PAM-4 to achieve 400 or 800 Gbps aggregate per port. The QSFP-DD (112) portfolio’s backwards compatibility allows existing QSFP112 modules to be plugged into QSFP-DD(112) ports, provide low loss, less skew and better NEXT. providing superior thermal and signal integrity performance.
