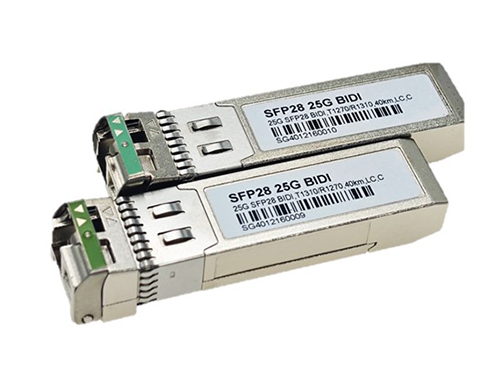

PRODUCT FEATURES  Operating data rate up to 25.78Gbps  1270nm DFB Laser and APD/TIA receiver for ESJMLB23-K40C(I) 1310nm DFB Laser and APD/TIA receiver for ESJMLB32-K40C(I)  Maximum link length of 40km on Single Mode Fiber (SMF)  Hot pluggable 20pin connector  Minimum guaranteed optical budget of 18 dB  LC single connector  Single +3.3V±5% power supply  Maximum power dissipation < 1.5W  Specifications compliant with SFF 8472  Fully RoHS Compliant  Case operating temperature range: Commercial: 0°C to +70°C Industrial: -40°C to +85°C

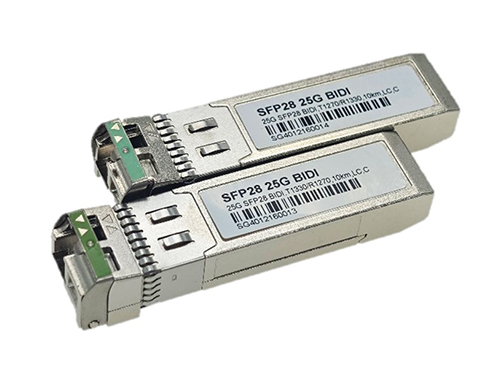

PRODUCT FEATURES  Supports 25.78Gb/s aggregate bit rate  1270nm DFB Laser and PIN/TIA receiver for ESJMLB23-K10C(I) 1330nm DFB Laser and PIN/TIA receiver for ESJMLB32-K10C(I)  Maximum link length of 10km on Single Mode Fiber (SMF)  Hot-pluggable SFP28 footprint  LC receptacles  Single 3.3V power supply  Maximum power dissipation < 1.2W  RoHS-6 compliant and lead-free  I2C management interface  Case operating temperature Commercial: 0°C to +70°C Industrial: -40°C to +85°C

PRODUCT FEATURES  Up to 25.7813Gbps Data Links  850nm VCSEL laser transmitter and PIN receiver  Maximum link length of 70m on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF  Hot-pluggable SFP28 footprint  Duplex LC receptacles  Low power dissipation  RoHS compliant and lead-free  Support Digital Diagnostic Monitor interface  Single +3.3V power supply  0°C to +70°C case operating temperature

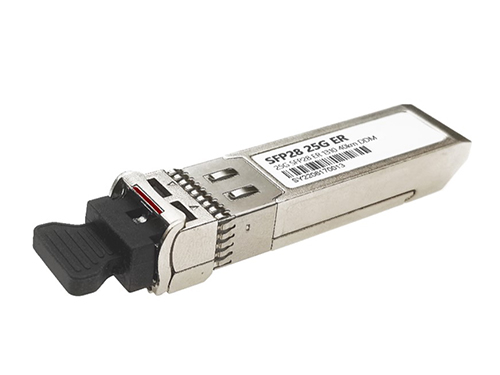

PRODUCT FEATURES  Supports 25.78Gb/s aggregate bit rate  1310nm EML Laser transmitter and APD/TIA receiver  Maximum link length of 40km on Single Mode Fiber (SMF)  Hot-pluggable SFP28 footprint  Duplex LC receptacles  Single 3.3V power supply  Maximum power dissipation < 1.8W  RoHS-6 compliant and lead-free  I2C management interface  Case operating temperature Commercial: 0°C to +70°C Industrial: -40°C to +85°C

PRODUCT FEATURES  Up to 25.78Gb/s Bidirectional data links  CWDM DFB Laser transmitter  Maximum link length of 10km on Single Mode Fiber (SMF)  Hot-pluggable SFP+ footprint  Duplex LC receptacles  Single 3.3V power supply  Maximum power dissipation < 1.5W  RoHS-6 compliant and lead-free  Built-in digital diagnostic functions  Case operating temperature Commercial: 0°C to +70°C

PRODUCT FEATURES  Supports 25.78Gb/s aggregate bit rate  1310nm DFB Laser transmitter and PIN/TIA receiver  Maximum link length of 10km on Single Mode Fiber (SMF)  Hot-pluggable SFP28 footprint  Duplex LC receptacles  Single 3.3V power supply  Maximum power dissipation < 1.2W  RoHS-6 compliant and lead-free  I2C management interface  Case operating temperature Commercial: 0°C to +70°C Industrial: -40°C to +85°C

PRODUCT FEATURES  Up to 25.7813Gbps Data Links  850nm VCSEL laser transmitter and PIN/TIA receiver  Maximum link length of 100m on OM4 MMF  Hot-pluggable SFP+ footprint  Power consumption less than 1W  RoHS compliant and lead-free  Support Digital Diagnostic Monitor interface  +3.3V Single power supply  Case operating temperature Commercial: 0°C to +70°C

PRODUCT FEATURES  Up to 25.7813Gbps Data Links  850nm VCSEL laser transmitter and PIN/TIA receiver  Maximum link length of 50m on OM2 MMF  Hot-pluggable SFP+ footprint  Power consumption less than 1W  RoHS compliant and lead-free  Support Digital Diagnostic Monitor interface  +3.3V Single power supply  Case operating temperature Commercial: 0°C to +70°C
