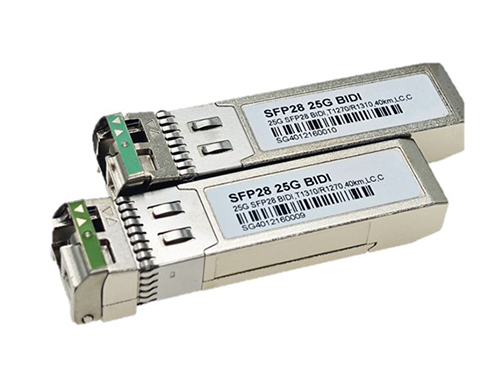

LPJMLB23(B32)-K40C(I)

    PRODUCT FEATURES
     Operating data rate up to 25.78Gbps
     1270nm DFB Laser and APD/TIA receiver for ESJMLB23-K40C(I)
    1310nm DFB Laser and APD/TIA receiver for ESJMLB32-K40C(I)
     Maximum link length of 40km on
    Single Mode Fiber (SMF)
     Hot pluggable 20pin connector
     Minimum guaranteed optical budget of 18 dB
     LC single connector
     Single +3.3V±5% power supply
     Maximum power dissipation < 1.5W
     Specifications compliant with SFF 8472
     Fully RoHS Compliant
     Case operating temperature range:
    Commercial: 0°C to +70°C
    Industrial: -40°C to +85°C
  • Product Detail

APPLICATIONS

l  25GBASE-LR 25G Ethernet

l  CPRI 10

Compliance

l  SFF-8431.

l  IEEE802.3cc

l  SFP28 MSA

l  RoHS

Ordering information

Part No.

Bit Rate

(Gbps)

Laser (nm)

Distance

Fiber Type

DDMI

Connector

Temp

ESJMLB23-K40C

25.78125

1270

40km

SMF

YES

LC

0~+70

ESJMLB32-K40C

25.78125

1310

40km

SMF

YES

LC

0~+70

ESJMLB23-K40I

25.78125

1270

40km

SMF

YES

LC

-40~+85

ESJMLB32-K40I

25.78125

1310

40km

SMF

YES

LC

-40~+85

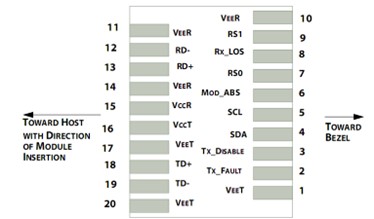

I.       Pin Diagram


Pin out of Connector Block on Host Board

II.     Pin Descriptions

Pin

Symbol

Name/Description

Ref.

1

VEET

Transmitter Ground (Common with Receiver Ground)

1

2

TFAULT

Transmitter Fault.

2

3

TDIS

Transmitter Disable. Laser output disabled on high or open.

3

4

SDA

2-wire Serial Interface Data Line

4

5

SCL

2-wire Serial Interface Clock Line

4

6

MOD_ABS

Module Absent. Grounded within the module

4

7

RS0

Rate Select 0

6

8

LOS

Loss of Signal indication. Logic “0” indicates normal operation.

5

9

RS1

Rate select 1

6

10

VEER

Receiver Ground (Common with Transmitter Ground)

1

11

VEER

Receiver Ground (Common with Transmitter Ground)

1

12

RD-

Receiver Inverted DATA out. AC Coupled



13

RD+

Receiver Non-inverted DATA out. AC Coupled



14

VEER

Receiver Ground (Common with Transmitter Ground)

1

15

VCCR

Receiver Power Supply



16

VCCT

Transmitter Power Supply



17

VEET

Transmitter Ground (Common with Receiver Ground)

1

18

TD+

Transmitter Non-Inverted DATA in. AC Coupled.



19

TD-

Transmitter Inverted DATA in. AC Coupled.



20

VEET

Transmitter Ground (Common with Receiver Ground)

1

Notes:

1. Circuit ground is internally isolated from chassis ground.

2. TFAULT is an open collector/drain output, which is pulled up with a 4.7kΩ – 10kΩ resistor on the host board if intended for use. Pull up voltage should be between 2.0V to Vcc + 0.3V. A high output indicates a transmitter fault caused by either the TX bias current or the TX output power exceeding the preset alarm threshold. A low output indicates normal operation. In the low state, the output is pulled to <0.8V.

3. Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.

4. Should be pulled up with 4.7kΩ – 10kΩ on host board to a voltage between 2.0V and 3.6V. MOD_ABS pulls line low to indicate module is plugged in.

5. LOS is open collector output. Should be pulled up with 4.7kΩ – 10kΩ on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

6. Internally pulled down per SFF-8431 Rev 4.1.


III.   Absolute Maximum Ratings

Parameter

Symbol

Min.

Typ.

Max.

Unit

Ref.

Maximum Supply Voltage

Vcc

-0.5



3.6

V



Storage Temperature

TS

-40



85



Relative Humidity

RH

0



85

%






IV.  Optical Characteristics

Parameter

Symbol

Min.

Typ.

Max.

Unit

Remark

Transmitter

Signaling rate(range)

Sr



25.7825±100ppm



GBd



Center Wavelength

λc

1260

1270

1280

nm

ESJMLB23-K40C(I)

1300

1310

1320

nm

ESJMLB32-K40C(I)

Spectral Width(-20dB)

Pm





1

nm



Average Output Power

Pavg

0



6

dBm



Extinction Ratio

ER

3.5





dB



Side Mode Suppression Ratio

SMSR

30





dB



Transmitter OFF Output Power

POff





-30

dBm



Relative Intensity Noise

RIN

dB/Hz



-128

dB/Hz



Transmitter eye mask definition {X1, X2, X3, Y1, Y2, Y3} Hit ratio 5×10-5 hits per sample.



{0.31, 0.4, 0.45, 0.34, 0.38, 0.4}





Receiver

Signaling rate(range)

Sr



25.7825±100ppm



GBd



Center Wavelength

λc

1300

1310

1320

nm

ESJMLB23-K40C(I)

1260

1270

1280

nm

ESJMLB23-K40C(I)

Receiver Sensitivity(OMA)

RSENSE





-18

dBm

1

Receiver Overload (OMA)

Pmax

-5





dBm



Receiver Reflectance

Rfl





-12

dBm



Loss of Signal Assert

PA

-30





dBm



Loss of Signal De-assert

PD





-21

dBm



LOS Hysteresis

PD- PA

 0.5





dB



































Note:

1.     Measured at 25.78125Gb/s, ER>3.5dBm, PRBS 231-1 and BER better than or equal to 5x10-5.

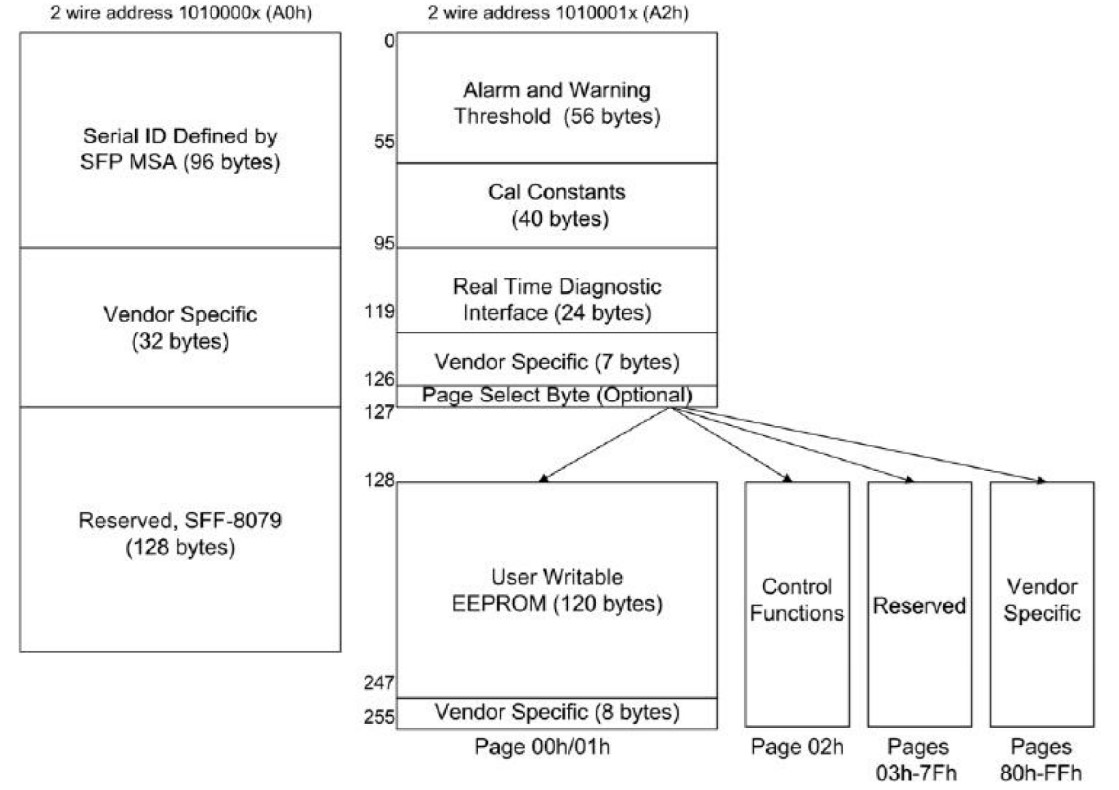

V.     Digital Diagnostic Memory Map



VI.  Digital Diagnostic Specifications

Parameter

Unit

Accuracy

Case Temperature

±3

Supply Voltage

V

±3%

Tx Bias Current

mA

±10%

Tx Optical Power

dB

±3

Rx Optical Power

dB

±3



VII.   Electrical Interface Characteristics

Parameter

Symbol

Min

Type

Max

Unit

Ref.

Supply Voltage

Vcc

3.14

3.3

3.46

V



Power dissipation

Pd





1.5

W



Bite rate

BR



25.78



Gb/s



Bit Error Ratio

BER





5*10-5





Transmitter

Input differential impedance

Rin



100





1

Differential data input swing

Vin, pp

90



450

mV



Transmit Disable Voltage

VD

2



VccHOST

V



Transmit Enable Voltage

VEN

Vee



Vee+0.8

V



Transmit Fault Assert Voltage

VFA

2



VccHOST

V



Transmit Fault De-Assert Voltage

VFDA

Vee



Vee+0.8

V



Receiver

Differential data output swing

Vout, pp

200



450

mV

2

LOS Fault

VLOS_fault

2



VccHOST

V

3

LOS Normal

VLOS_norm

Vee



Vee+0.8

V

3

Notes:

1. Connected directly to TX data input pins.AC coupling from pins into laser driver IC.

2. Into 100Ω differential termination.

3. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1. Maximum pull-up voltage is 5.5V.

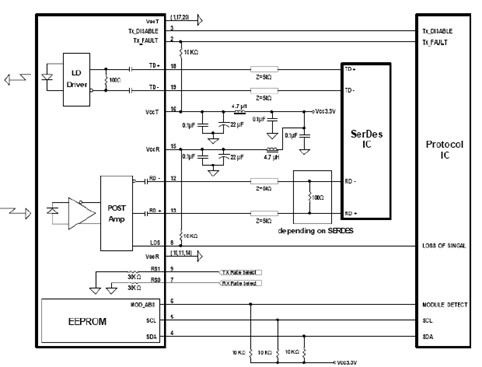

VIII.Recommended Interface Circuit

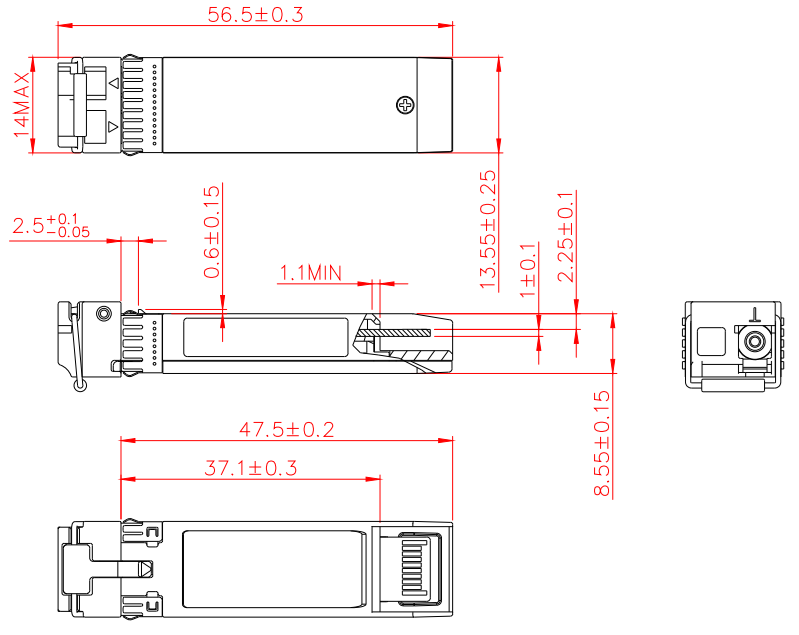

IX.  Mechanical Specifications (Unit: mm)
