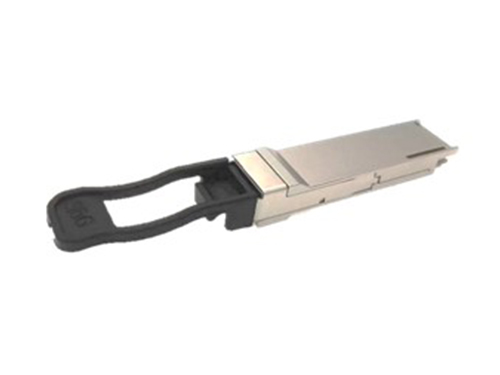

APPLICATIONS
l 16 Fibre Channel at 14Gb/s per channel
l InfiniBand QDR at 56G
l Other optical links
Compliance
l QSFP+ MSA.
l IEEE802.3ba
l SFF-8436
l RoHS
Ordering information
Part NO. |
Bit Rate (Gbps) |
Laser (nm) |
Distance(m) |
Media |
DDMI |
Connector |
Temp(℃) |
ESAPMM85-S15C |
56 |
850 |
150 |
multi-mode fiber |
YES |
MPO 1X12 |
0~70 |
I. Pin Diagram

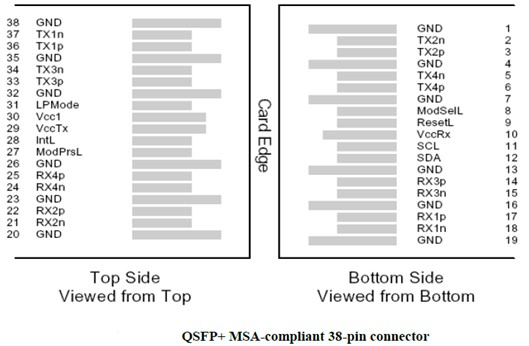

II. Pin Descriptions
Pin |
Symbol |
Name/Description |
Ref. |
1 |
GND |
Ground |
1 |
2 |
Tx2n |
Transmitter Inverted Data Input |
|
3 |
Tx2p |
Transmitter Non-Inverted Data Input |
|
4 |
GND |
Ground |
1 |
5 |
Tx4n |
Transmitter Inverted Data Input |
|
6 |
Tx4p |
Transmitter Non-Inverted Data Input |
|
7 |
GND |
Ground |
1 |
8 |
ModSe1L |
Module Select |
|
9 |
ResetL |
Module Reset |
|
10 |
Vcc Rx |
+3.3V Power supply receiver |
|
11 |
SCL |
2-wire serial interface clock |
|
12 |
SDA |
2-wire serial interface data |
|
13 |
GND |
Ground |
1 |
14 |
Rx3p |
Receiver Non-Inverted Data Output |
|
15 |
Rx3n |
Receiver Inverted Data Output |
|
16 |
GND |
Ground |
1 |
17 |
Rx1p |
Receiver Non-Inverted Data Output |
|
18 |
Rx1n |
Receiver Inverted Data Output |
|
19 |
GND |
Ground |
1 |
20 |
GND |
Ground |
1 |
21 |
Rx2n |
Receiver Inverted Data Output |
|
22 |
Rx2p |
Receiver Non-Inverted Data Output |
|
23 |
GND |
Ground |
1 |
24 |
Rx4n |
Receiver Inverted Data Output |
|
25 |
Rx4p |
Receiver Non-Inverted Data Output |
|
26 |
GND |
Ground |
1 |
27 |
ModPrSL |
Module Present |
|
28 |
IntL |
Interrupt |
|
29 |
Vcc Tx |
+3.3V Power supply transmitter |
|
30 |
Vcc1 |
+3.3V Power Supply |
|
31 |
LPMode |
Low Power Mode |
|
32 |
GND |
Ground |
1 |
33 |
Tx3p |
Transmitter Non-Inverted Data Input |
|
34 |
Tx3n |
Transmitter Inverted Data Input |
|
35 |
GND |
Ground |
1 |
36 |
Tx1p |
Transmitter Non-Inverted Data Input |
|
37 |
Tx1n |
Transmitter Inverted Data Input |
|
38 |
GND |
Ground |
1 |
Note:
1. Circuit ground is internally isolated from chassis ground.
III. Absolute Maximum Ratings
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Ref. |
Storage Temperature |
TS |
-40 |
|
85 |
ºC |
|
Relative Humidity |
HA |
5 |
|
85 |
% |
|
Maximum Supply Voltage |
VCC1, VCCTX, VCCRX |
-0.5 |
|
3.6 |
V |
|
Receiver Damage Threshold |
|
+3.4 |
|
|
dBm |
|
Lead Soldering Temperature/Time |
TSOLD |
|
|
260/10 |
ºC/sec |
1 |
Lead Soldering Temperature/Time |
TSOLD |
|
|
360/10 |
ºC/sec |
2 |
Note:
1.Suitable for wave soldering.
2. Only for soldering by iron.
IV. Optical Characteristics
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Ref. |
Transmitter(per Lane) |
||||||
Average Output Power |
POUT |
-6 |
|
2.4 |
dBm |
|
Extinction Ratio |
ER |
3.0 |
|
|
dB |
|
Center Wavelength |
λC |
840 |
|
860 |
nm |
|
RMS Spectral Width |
σ |
|
|
0.6 |
nm |
|
Transmitter OFF Output Power |
POff |
|
|
-30 |
dBm |
|
Relative Intensity Noise |
RIN |
|
|
-128 |
dB/Hz |
|
Transmitter eye mask definition {X1,X2,X3,Y1,Y2,Y3} |
|
0.23,0.34,0.43,0.27,0.35,0.4 |
|
|
||
Receiver(per Lane) |
||||||
Input Optical Wavelength |
λIN |
840 |
|
860 |
nm |
|
Rx Sensitivity per lane |
RSENS |
|
|
-10.3 |
dBm |
@BER=1E-12 |
Input Saturation Power (Overload) |
PSAT |
+2.4 |
|
|
dBm |
1 |
Loss of Signal Assert |
PA |
-30 |
|
|
dBm |
|
Loss of Signal De-assert |
PD |
|
|
-12 |
dBm |
|
LOS Hysteresis |
PD - PA |
0.5 |
|
6 |
dB |
|
Note:
1. Measured with PRBS 2^31-1 test pattern @14.025Gbps.BER=1E-12.
V. Electrical Interface Characteristics
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Ref. |
Supply Voltage |
VCC1, VCCTX, VCCRX |
3.15 |
|
3.45 |
V |
|
Supply Current |
ICC |
|
|
350 |
mA |
|
Transmitter(per Lane) |
||||||
Input different impedance |
Rin |
90 |
100 |
110 |
Ω |
1 |
Single ended input voltage tolerance |
VinT |
-0.3 |
|
4.0 |
V |
|
Single ended data input swing |
Vin,pp |
200 |
|
1000 |
mV |
2 |
Receiver (per Lane) |
||||||
Output different impedance |
Rout |
90 |
100 |
110 |
Ω |
1 |
Single ended data output swing |
Vout,pp |
200 |
|
1000 |
mV |
3 |
Single-ended output voltage |
VoutR |
-0.3 |
|
4.0 |
V |
|
Note :
1.Connected directly to TX data input pins. AC coupled thereafter.
2. After internal AC coupling. Self-biasing 100Ω differential input
3.Into 100Ω differential termination.
VI. Memory Map and Control Registers
Compatiable with SFF-8436Rev.4.8(QSFP+).

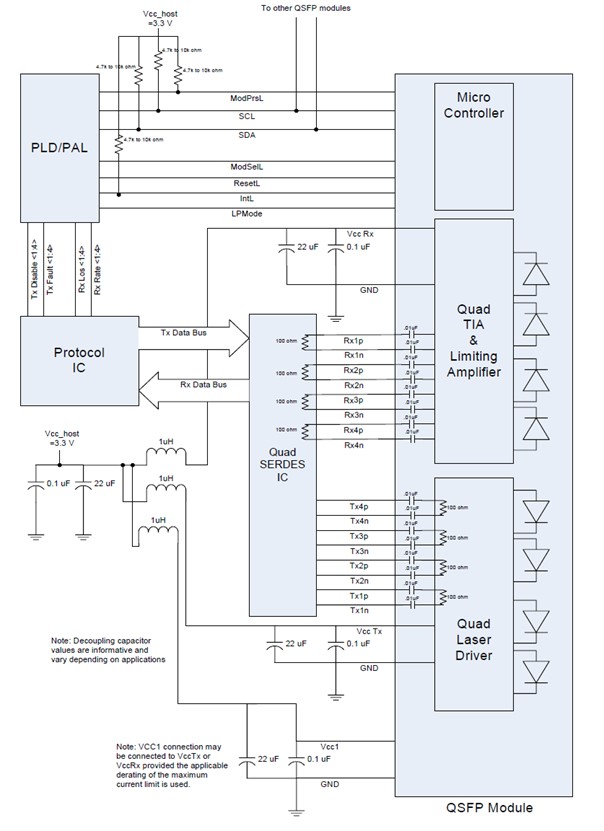

VII. Recommended Interface Circuit

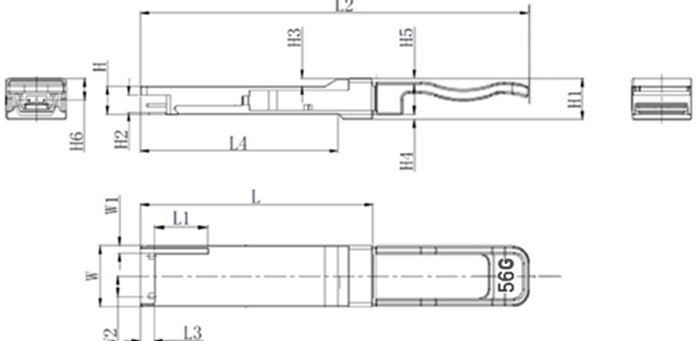

VIII.Mechanical Specifications (Unit: mm)
