PRODUCT FEATURES Up to 2.488Gbps Data Links 1550nm/1490nm DFB laser transmitter and PIN/TIA receiver Maximum link length of 80km on 9/125um SMF Hot-pluggable SFP footprint LC receptacles Low power dissipation RoHS compliant and lead-free Support Digital Diagnostic Monitor interface Single +3.3V power supply Compliant with SFF-8472

PRODUCT FEATURES Up to 2.488Gbps Data Links 1550nm/1310nm DFB laser transmitter and PIN/TIA receiver Maximum link length of 40km on 9/125um SMF Hot-pluggable SFP footprint LC receptacles Low power dissipation RoHS compliant and lead-free Support Digital Diagnostic Monitor interface Single +3.3V power supply Compliant with SFF-8472

PRODUCT FEATURES Up to 2.488Gbps Data Links 1550nm/1310nm DFB laser transmitter and PIN/TIA receiver Maximum link length of 20km on 9/125um SMF Hot-pluggable SFP footprint LC receptacles Low power dissipation RoHS compliant and lead-free Support Digital Diagnostic Monitor interface Single +3.3V power supply Compliant with SFF-8472

PRODUCT FEATURES Up to 2.488Gbps Data Links 1550nm(1310nm) DFB laser transmitter and PIN/TIA receiver Maximum link length of 15km on 9/125um SMF Hot-pluggable SFP footprint LC receptacles Low power dissipation RoHS compliant and lead-free Support Digital Diagnostic Monitor interface Single +3.3V power supply Compliant with SFF-8472

PRODUCT FEATURES Up to 2.488Gbps Data Links 1550nm(1310nm) DFB laser transmitter and PIN/TIA receiver Maximum link length of 10km on 9/125um SMF Hot-pluggable SFP footprint LC receptacles Low power dissipation RoHS compliant and lead-free Support Digital Diagnostic Monitor interface Single +3.3V power supply Compliant with SFF-8472

PRODUCT FEATURES Up to 2.67Gbps Data Links Cooled DWDM DFB laser transmitter and APD/TIA receiver Maximum link length of 120km on 9/125um SMF Hot-pluggable SFP footprint Duplex LC receptacles Low power dissipation RoHS compliant and lead-free Support Digital Diagnostic Monitor interface Single +3.3V power supply Compliant with SFF-8472 Case operating temperature Commercial: 0°C to +70°C Industrial: -40°C to +85°C

PRODUCT FEATURES Up to 2.488Gbps Data Links 8-Wavelength CWDM DFB LD Transmitter from 1470nm to 1610nm, with Step 20nm Maximum link length of 120km on 9/125um SMF Hot-Pluggable SFP Footprint Duplex LC Connector Interface Class 1 FDA and IEC60825-1 Laser Safety Compliant Compliant with SFP MSA Specification Compliant with SFF-8472 Digital Diagnostic Monitor Interface Single +3.3V power supply and TTL Control Logic Interface Compliant with SFF-8472 Safety Certification: TUV/UL/FDA RoHS Compliant Operating Case Temperature ：Commercial: 0℃~+70℃ Extended: -20℃~+85℃

PRODUCT FEATURES Up to 2.488Gbps Data Links 18-Wavelength CWDM DFB LD Transmitter from 1470nm to 1610nm, with Step 20nm Maximum link length of 80km on 9/125um SMF Hot-Pluggable SFP Footprint Duplex LC Connector Interface Class 1 FDA and IEC60825-1 Laser Safety Compliant Compliant with SFP MSA Specification Compliant with SFF-8472 Digital Diagnostic Monitor Interface Single +3.3V power supply and TTL Control Logic Interface Compliant with SFF-8472 Safety Certification: TUV/UL/FDA RoHS Compliant Operating Case Temperature ：Commercial: 0℃~+70℃ Extended: -20℃~+85℃

PRODUCT FEATURES Up to 2.488Gbps Data Links 18-Wavelength CWDM DFB LD Transmitter from 1270nm to 1450nm, with Step 20nm Maximum link length of 40km on 9/125um SMF Hot-Pluggable SFP Footprint Duplex LC Connector Interface Class 1 FDA and IEC60825-1 Laser Safety Compliant Compliant with SFP MSA Specification Compliant with SFF-8472 Digital Diagnostic Monitor Interface Single +3.3V power supply and TTL Control Logic Interface Compliant with SFF-8472 Safety Certification: TUV/UL/FDA RoHS Compliant Operating Case Temperature ：Commercial: 0℃~+70℃ Extended: -20℃~+85℃

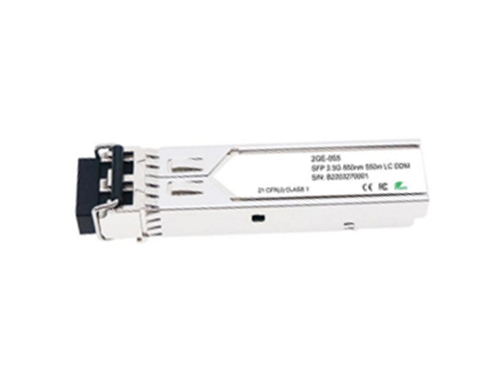

PRODUCT FEATURES Up to 2.488Gbps Data Links 850nm VCSEL laser transmitter and PIN/TIA receiver Maximum link length of 550m on 50/125um MMF Hot-pluggable SFP footprint Duplex LC receptacles Low power dissipation RoHS compliant and lead-free Support Digital Diagnostic Monitor interface Single +3.3V power supply Compliant with SFF-8472 Case operating temperature Commercial:0℃ to +70℃ Industrial:-40℃ to +85℃

PRODUCT FEATURES Up to 2.488Gbps Data Links 1550nm DFB laser transmitter and PIN/TIA receiver Maximum link length of 80km on 9/125um SMF Hot-pluggable SFP footprint Duplex LC receptacles Low power dissipation RoHS compliant and lead-free Support Digital Diagnostic Monitor interface Single +3.3V power supply Compliant with SFF-8472

PRODUCT FEATURES Up to 2.488Gbps Data Links 1310nm DFB laser transmitter and PIN/TIA receiver Maximum link length of 40km on 9/125um SMF Hot-pluggable SFP footprint Duplex LC receptacles Low power dissipation RoHS compliant and lead-free Support Digital Diagnostic Monitor interface Single +3.3V power supply Compliant with SFF-8472
