Applications
10 Gigabit Ethernet over Cat 6A/7 cable
5 Gigabit Ethernet over Cat 6A/7 cable
2.5 Gigabit Ethernet over Cat 6A/7 cable
1.25 Gigabit Ethernet over Cat 5e cable
Description

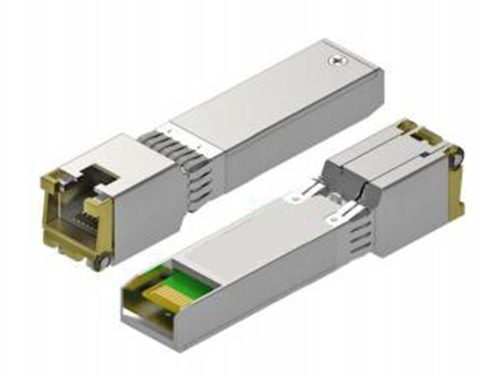

Esion’s ESHKREEE-M30C Copper Small Form Pluggable Plus (SFP+) transceivers is high performance, cost effective module compliant with the 10 Gigabit Ethernet and 10G BASE-T standards as specified in IEEE 802. 3-2015 and IEEE 802.3an, which supporting 10Gbps data-rate up to 30 meters reach over shielded twisted-pair category 6A cable. The module supports 10Gbps full duplex data-links with 16-level Pulse Amplitude Modulation (PAM) signals. The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial bus. The physical IC can also be accessed via 2wire serial bus at address ACh.
Pin Definitions

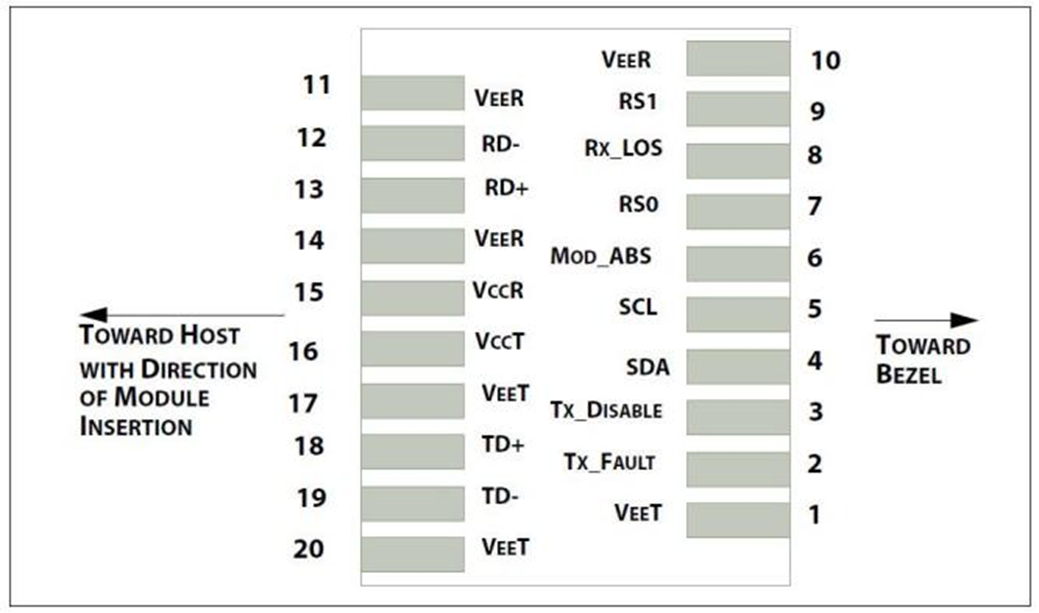

Pin Diagram
Figure 1. Pin Definitions
Pin Descriptions
|
Pin |
Signal Name |
Description |
Notes |
|
1 |
VeeT |
Module Transmitter Ground |
Note1 |
|
2 |
Tx_Fault |
Module Transmitter Fault |
Note2 |
|
3 |
Tx_Disable |
Transmitter Disable; Turns off transmitter laser output |
Note3 |
|
4 |
SDA |
2-wire Serial Interface Data Line (Same as MOD-DEF2 in INF-8074i) |
|
|
5 |
SCL |
2-wire Serial Interface Clock (Same as MOD-DEF1 in INF-8074i) |
|
|
6 |
Mod_ABS |
Module Absent, connected to VeeT or VeeR in the module |
|
|
7 |
RS0 |
Rate Select 0, optionally controls SFP+ module receiver. |
|
|
8 |
Rx_LOS |
Receiver Loss of Signal Indication (In FC designated as Rx_LOS and in Ethernet designated as Signal Detect) |
Note2 |
|
9 |
RS1 |
Rate Select 1, optionally controls SFP+ module transmitter |
|
|
10 |
VeeR |
Module Receiver Ground |
Note1 |
|
11 |
VeeR |
Module Receiver Ground |
Note1 |
|
12 |
RD- |
Receiver Inverted Data Output |
|
|
13 |
RD+ |
Receiver Non-Inverted Data Output |
|
|
14 |
VeeR |
Module Receiver Ground |
Note1 |
|
15 |
VccR |
Module Receiver 3.3 V Supply |
|
|
16 |
VccT |
Module Transmitter 3.3 V Supply |
|
|
17 |
VeeT |
Module Transmitter Ground |
Note1 |
|
18 |
TD+ |
Transmitter Non-Inverted Data Input |
|
|
19 |
TD- |
Transmitter Inverted Data Input |
|
|
20 |
VeeT |
Module Transmitter Ground |
Note1 |
Note:
1. The module signal ground contacts, VeeR and VeeT, should be isolated from the module case.
2. This contact is an open collector/drain output contact and shall be pulled up on the host. Pull ups can be connected to one of several power supplies, however the host board.
3. Tx_Disable is an input contact with a 4.7 kΩ to 10 kΩ pullup to VccT inside the module.
+3.3V Volt Electrical Power Interface
|
+3.3V volt Electrical Power Interface |
||||||
|
Parameter |
Symbol |
Min |
Typ |
Max |
Units |
Notes/Conditions |
|
Supply Current |
Is |
|
500 |
757 |
mA |
2.5W max power over full range of voltage and temperature. See caution note below |
|
Input Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
Referenced to GND |
|
Maximum Voltage |
Vmax |
|
|
3.6 |
V |
|
Low-speed signals, electronic characteristics
|
Low-Speed Signals, Electronic Characteristics |
|||||
|
Parameter |
Symbol |
Min |
Max |
Units |
Notes/Conditions |
|
SFP+ Output LOW |
VOL |
0 |
0.5 |
V |
4.7k to 10k pull-up to host_Vcc, measured at host side of connector |
|
SFP+ Output HIGH |
VOH |
host_Vcc - 0.5 |
host_Vcc + 0.3 |
V |
4.7k to 10k pull-up to host_Vcc, measured at host side of connector |
|
SFP+ Input LOW |
VIL |
0 |
0.8 |
V |
4.7k to 10k pull-up to Vcc, measured at SFP side of connector |
|
SFP+ Input HIGH |
VIH |
2 |
Vcc + 0.3 |
V |
4.7k to 10k pull-up to Vcc, measured at SFP side of connector |
High-speed electrical interface, transmission line-SFP+
|
High-Speed Electrical Interface Transmission Line-SFP+ |
||||||
|
Parameter |
Symbol |
Min |
Typ |
Max |
Units |
Notes/Conditions |
|
Line Frequency |
fL |
|
800 |
|
MHz |
16-level encoding, per IEEE 802.3 |
|
Tx Output Impedance |
Zout,TX |
|
100 |
|
Ohm |
Differential, for all Frequencies between 1MHz and 800MHz |
|
Rx Input Impedance |
Zin,RX |
|
100 |
|
Ohm |
Differential, for all Frequencies between 1MHz and 800MHz |
High-speed electrical interface, host-SFP+
|
High-Speed Electrical Interface, Host-SFP |
||||||
|
Parameter |
Symbol |
Min |
Typ |
Max |
Units |
Notes/Conditions |
|
Single ended data input swing |
Vinsing |
500 |
800 |
1100 |
mV |
Differential |
|
Single ended data output swing |
Voutsing |
500 |
800 |
1100 |
mV |
Differential |
|
Rise/Fall Time |
Tr,Tf |
25 |
|
47 |
psec |
20%-80% |
|
Tx Input Impedance |
Zin |
|
100 |
|
Ohm |
Differential |
|
Rx Output Impedance |
Zout |
|
100 |
|
Ohm |
Differential |
General specifications
|
General |
||||||
|
Parameter |
Symbol |
Min |
Typ |
Max |
Units |
Notes/Conditions |
|
Data Rate |
BR |
1 |
|
10 |
Gbps |
IEEE 802.3 compatible. See Notes 2 through 4 below |
|
Cable Length |
L |
|
|
30 |
m |
Category 6A STP. BER <10-12 |
Notes:
1. Clock tolerance is +/- 50 ppm
2. By default, the ESHKREEE-M30C is a full duplex device in preferred master mode
3. Automatic crossover detection is enabled. External crossover cable is not required
Environmental specifications
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Operating Case Temperature |
Tc |
0 |
|
+70 |
°C |
|
Storage Temperature |
|
-40 |
|
+85 |
°C |

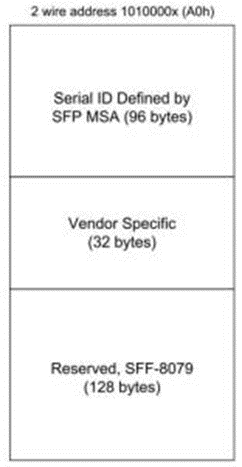

EEPROM Information
Figure 2. 2-wire Serial Memory Map

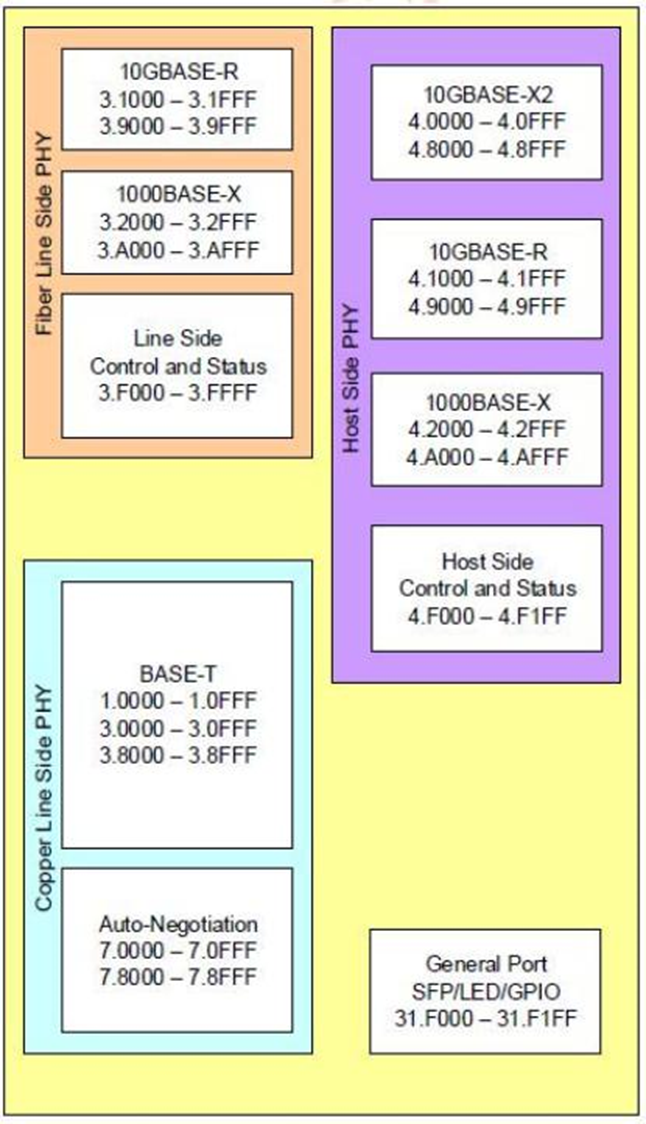

Physical Layer IC Register
Figure 3. Phy IC Register List

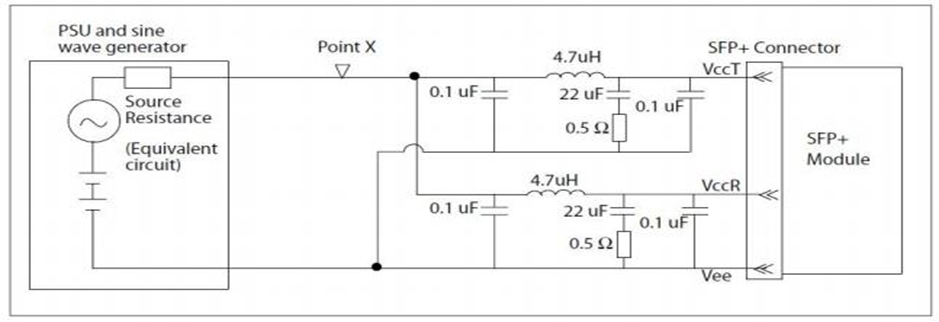

Recommended Host Board Power Supply Circuit
Figure 4. Recommended Host Board Power Supply Circuit

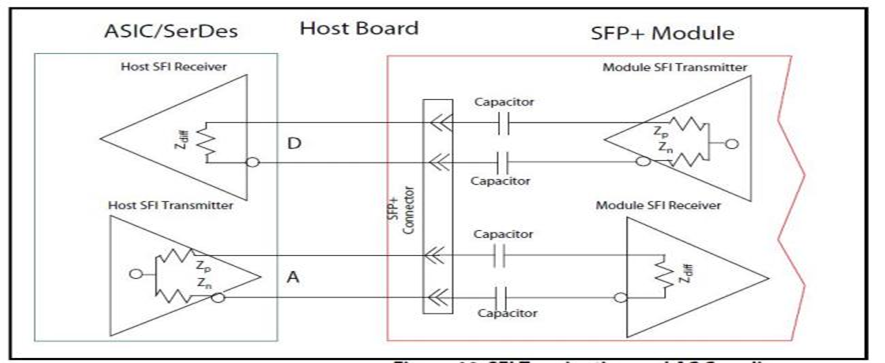

Recommended Interface Circuit
Figure 5. Recommended Host Board Power Supply Circuit

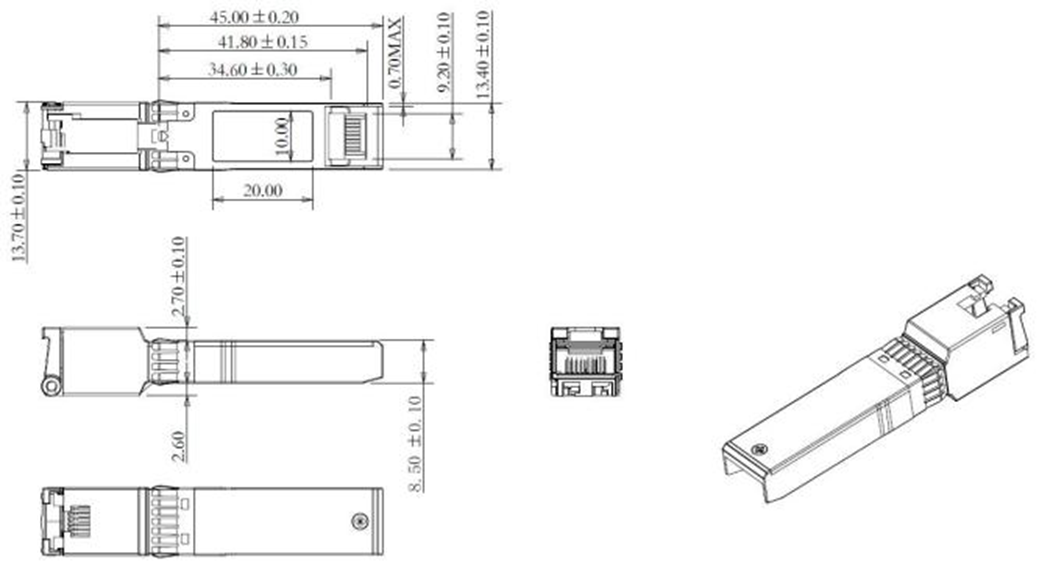

Mechanical Specifications
The host-side of the GE-GB-PxRC-x conforms to the mechanical specifications outlined in the SFP MSA1. The front portion of the SFP (part extending beyond the face plate of the host) is larger to accommodate the RJ-45 connector
Figure 6. Mechanical dimensions
Regulatory Compliance
|
Feature |
Standard |
|
Environmental protection |
2011/65/EU |
|
CE EMC |
EN55032 EN55035 |
|
FCC |
47CFR FCC Part 15 Subpart B （Class B）ANSI C63.4:2014 |
|
RoHS |
2011/65/EU |
Ordering Information
|
Part number |
Speed mode |
MAC interface |
TX Disable function |
Link Indicator on RX_LOS Pin |
Case Temp |
|
ESHKREEE-M30C |
10Gbps |
XFI/5GBASE-R/2500BAS E-X/SGMII |
YES |
YES |
0~70℃ |
References
1. SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module SFP+ Revision 4.1 6th of July 2009.
2. IEEE802.3-2015.
