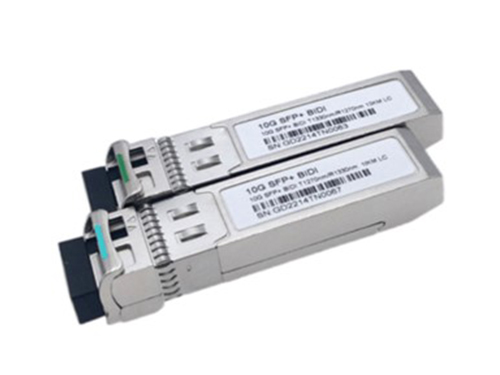

LPHKLB23(32)-K10C(I)

Inquire now

Categories

Hot Products

Product Detail

APPLICATIONS

l 10GBASE-LR/LW 10G Ethernet

l 1Gb/s,2Gb/s,4Gb/s,8Gb/s and 10Gb/s Fibre Channel

l CPRI Rates 10.138 Gb/s, 9.830 Gb/s

7.373 Gb/s, 6.144 Gb/s, 4.915 Gb/s

2.458 Gb/s, 1.229 Gb/s, 0.614 Gb/s

l Other Optical Links

Compliance

l SFP MSA

l SFF-8472

l IEEE802.3ae

l ROHS

Ordering information

Part No.	Bit Rate (Gbps)	Laser (nm)	Distance（km）	Fiber Type	DDMI	Connector	Temp
ESHKLB23-K10C	10.3125	1270	10	SMF	YES	LC	0℃~70℃
ESHKLB23-K10I	10.3125	1270	10	SMF	YES	LC	-40℃~85℃
ESHKLB32-K10C	10.3125	1330	10	SMF	YES	LC	0℃~70℃
ESHKLB32-K10I	10.3125	1330	10	SMF	YES	LC	-40℃~85℃

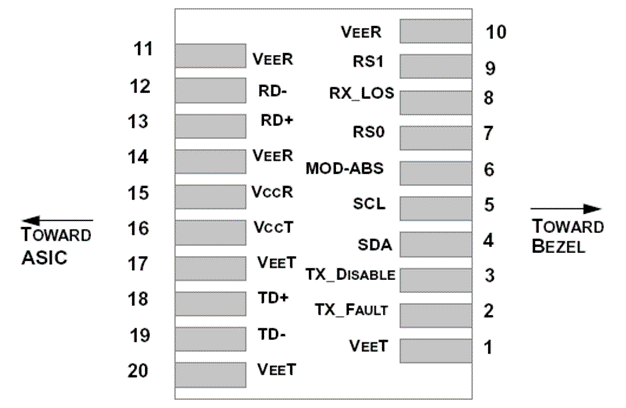

I. Pin Diagram

Pinout of Connector Block on Host Board

II. Pin Descriptions

Pin	Symbol	Name/Description	Ref.
1	V_EET	Transmitter Ground (Common with Receiver Ground)	1
2	T_FAULT	Transmitter Fault.	2
3	T_DIS	Transmitter Disable. Laser output disabled on high or open.	3
4	SDA	2-wire Serial Interface Data Line	4
5	SCL	2-wire Serial Interface Clock Line	4
6	MOD_ABS	Module Absent. Grounded within the module	4
7	RS0	No connection required
8	LOS	Loss of Signal indication. Logic “0” indicates normal operation.	5
9	RS1	No connection required
10	V_EER	Receiver Ground (Common with Transmitter Ground)	1
11	V_EER	Receiver Ground (Common with Transmitter Ground)	1
12	RD-	Receiver Inverted DATA out. AC Coupled
13	RD+	Receiver Non-inverted DATA out. AC Coupled
14	V_EER	Receiver Ground (Common with Transmitter Ground)	1
15	V_CCR	Receiver Power Supply
16	V_CCT	Transmitter Power Supply
17	V_EET	Transmitter Ground (Common with Receiver Ground)	1
18	TD+	Transmitter Non-Inverted DATA in. AC Coupled.
19	TD-	Transmitter Inverted DATA in. AC Coupled.
20	V_EET	Transmitter Ground (Common with Receiver Ground)	1

Notes:

1. Circuit ground is internally isolated from chassis ground.

2. T_FAULT is an open collector/drain output, which is pulled up with a 4.7kΩ – 10kΩ resistor on the host board, but is grounded inside the SFP+ cable plug.

3. Laser output disabled on T_DIS >2.0V or open, enabled on T_DIS <0.8V.

4. Should be pulled up with 4.7kΩ – 10kΩ on host board to a voltage between 2.0V and 3.6V. MOD_ABS pull line low to indicate module is plugged in.

5. LOS is open collector output. Should be pulled up with 4.7kΩ – 10kΩ on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

III. Absolute Maximum Ratings

Parameter	Symbol	Min	Type	Max	Unit	Ref.
Maximum Supply Voltage	Vcc	-0.5		3.6	V
Storage Temperature	TS	-40		85	℃
Case Operating Temperature	TOP	0		70	℃	Commercial
Case Operating Temperature	TOP	-40		85	℃	Industrial
Relative Humidity	RH	0		85	%	1

Notes:

1. Non-condensing.

IV. Optical Characteristics (TOP = 0°C to 70°C, VCC = 3.3 ± 5% Volts)

Parameter	Symbol	Min.	Typ.	Max.	Unit	Remark
Transmitter
Center Wavelength	λc	1260	1270	1280	nm	ESHKLB23-K10
Center Wavelength	λc	1320	1330	1340	nm	ESHKLB32-K10
Spectral Width(-20dB)	Pm			1	nm
Side-mode Suppression Ratio	SMSR	30			dB
Average Output Power	Pavg	-8.2		0.5	dBm
Extinction Ratio	ER	3.5			dB
Return Loss		12			dB
Transmitter OFF Output Power	POff			-30	dBm
Receiver
Center Wavelength	λc	1320	1330	1340	nm	ESHKLB23-K10
Center Wavelength	λc	1260	1270	1280	nm	ESHKLB32-K10
Receiver Sensitivity, Average Power				-14.4	dBm	1
Receiver Saturation Power	Psat			0.5	dBm
Loss of Signal Assert	P_A	-30			dBm
Loss of Signal De-assert	P_D			-17	dBm
LOS Hysteresis	P_D- P_A	0.5			dB

Notes:

1.Measured with a PRBS 2^31-1 test pattern, @10.3125Gb/s, BER<1E-12 .

V. Electrical Characteristics (TOP = 0°C to 70°C, VCC = 3.3 ± 5% Volts)

Parameter	Symbol	Min	Type	Max	Unit	Ref.
Supply Voltage	Vcc	3.135	3.3	3.465	V
Supply Current	Icc			285	mA	Commercial
Supply Current	Icc			330	mA	Industrial
Power consumption	Power			1.0	W	Commercial
Power consumption	Power			1.2	W	Industrial
Transmitter
Input differential impedance	Rin		100			1
Differential data input swing	Vin, pp	200		1000	mV
Transmit Disable Voltage	V_D	2		V_CC	V
Transmit Enable Voltage	V_EN	Vee		Vee+0.8	V
Receiver
Differential data output swing	Vout, pp	200		1000	mV	2
LOS Fault	V_{LOS_fault}	2		Vcc	V	3
LOS Normal	V_{LOS_norm}	Vee		Vee+0.8	V	3
Power Supply Noise Tolerance	V_CCT/V_CCR	Per SFF-8431			mVpp

Notes:

1. Connected directly to TX data input pins.AC coupling from pins into laser driver IC.

2. Into 100Ω differential termination.

3. Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.

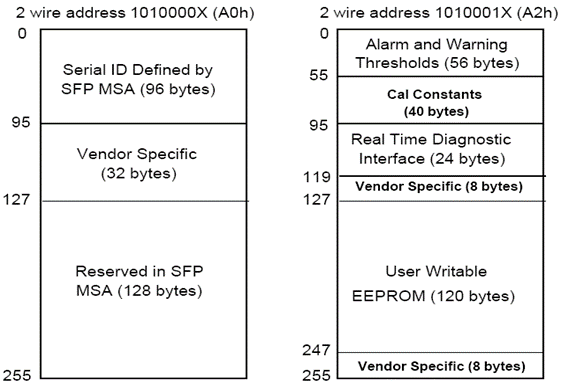

VI. Digital Diagnostic Memory Map

VII. Digital Diagnostic Monitoring Information

Parameter	Unit	Accuracy
Case Temperature	℃	±3
Supply Voltage	V	±3%
Tx Bias Current	mA	±10%
Tx Optical Power	dB	±3
Rx Optical Power	dB	±3

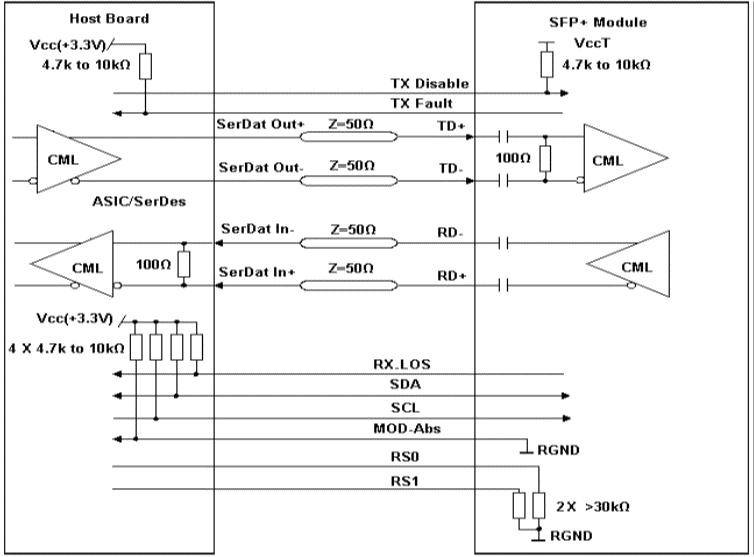

VIII.Recommended Interface Circuit

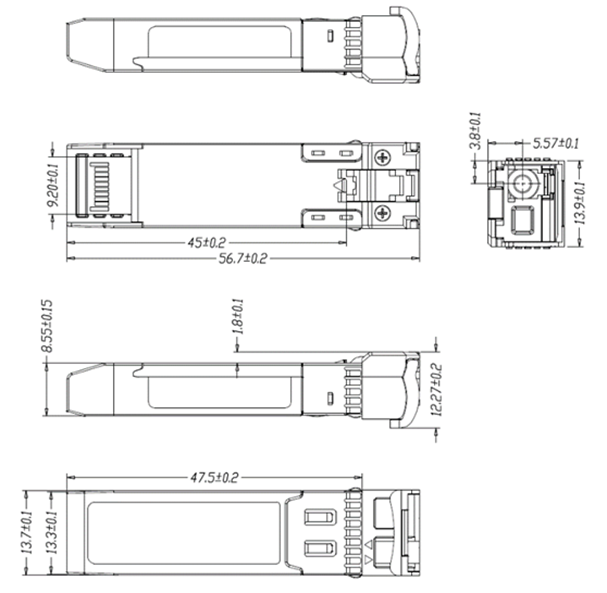

IX. Mechanical Dimensions

SFP wire mechanical drawing (Unit: mm)
