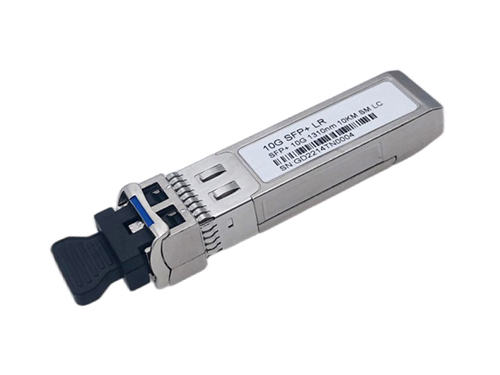

PRODUCT FEATURES Up to 10.3125Gbps Data Links 1310nm DFB laser transmitter and PIN/TIA receiver Maximum link length of 10km on 9/125um SMF Hot-pluggable SFP+ footprint Duplex LC receptacles Low power dissipation RoHS compliant and lead-free Support Digital Diagnostic Monitor interface Single +3.3V power supply Compliant with SFF-8472 Case operating temperature Commercial:0℃ to +70℃ Industrial:-40℃ to +85℃

PRODUCT FEATURES Up to 11.3Gbps Data Links Cooled CWDM EML laser transmitter and APD/TIA receiver Maximum link length of 80km on 9/125um SMF Hot-pluggable SFP+ footprint Duplex LC receptacles Low power dissipation RoHS compliant and lead-free Support Digital Diagnostic Monitor interface Single +3.3V power supply Compliant with SFF-8472 With CDR supported 9.95 to 11.3Gb/s reference-free Case operating temperature Commercial: 0°C to +70°C Industrial: -40°C to +85°C

PRODUCT FEATURES Up to 11.3Gbps Data Links Cooled CWDM EML laser transmitter and PIN/TIA receiver Maximum link length of 40km on 9/125um SMF Hot-pluggable SFP+ footprint Duplex LC receptacles Low power dissipation RoHS compliant and lead-free Support Digital Diagnostic Monitor interface Single +3.3V power supply Compliant with SFF-8472 Case operating temperature Commercial: 0°C to +70°C Industrial: -40°C to +85°C

PRODUCT FEATURES Up to 11.3Gbps Data Links Stable CWDM DFB laser transmitter and PIN/TIA receiver Maximum link length of 20km on 9/125um SMF Hot-pluggable SFP+ footprint Duplex LC receptacles Low power dissipation RoHS compliant and lead-free Support Digital Diagnostic Monitor interface Single +3.3V power supply Compliant with SFF-8472 Case operating temperature Commercial: 0°C to +70°C Extend: -20°C to +85°C

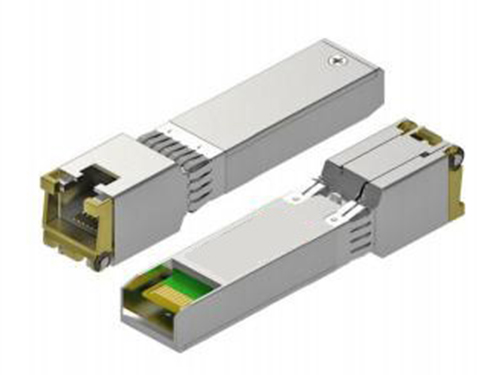

Features Supports Links up to 30m using Cat 6A Cable SFF-8431 and SFF-8432 MSA Compliant IEEE 802.3az and 802.3an Compliant IEEE 802.3bz for 5G&2.5G BASE-T Hot-pluggable SFP+ footprint TX Disable and RX Los function Fully metallic enclosure for Low EMI Emissions +3.3V single power supply Low Power Consumption (2.5W MAX @ 30m) Compact RJ-45 connector assembly Access to physical layer IC via 2-wire serial bus XFI/5GBASE-R/2500BASE-X/SGMII, SGMII Auto-Negotiation On Auto-negotiates with other 10GBase-T PHYs Supports 100/1000Base-T using Cat 5e cable or better MDI/MDIX Crossover Multiple Loopback Modes for Testing and Troubleshooting Built-in Cable Monitoring and Link Diagnostic Unshielded and Shielded cable support Operating case temperature range of 0°C to +70°C

PRODUCT FEATURES Up to 10.3125Gbps Data Links 850nm VCSEL laser transmitter and PIN/TIA receiver Maximum link length of 150m on OM3 MMF Hot-pluggable SFP+ footprint Power consumption less than 1W RoHS compliant and lead-free Support Digital Diagnostic Monitor interface +3.3V Single power supply Case operating temperature Commercial: 0°C to +70°C

PRODUCT FEATURES Up to 10.3125Gbps Data Links 850nm VCSEL laser transmitter and PIN/TIA receiver Maximum link length of 150m on OM2 MMF Hot-pluggable SFP+ footprint Power consumption less than 1W RoHS compliant and lead-free Support Digital Diagnostic Monitor interface +3.3V Single power supply Case operating temperature Commercial: 0°C to +70°C
